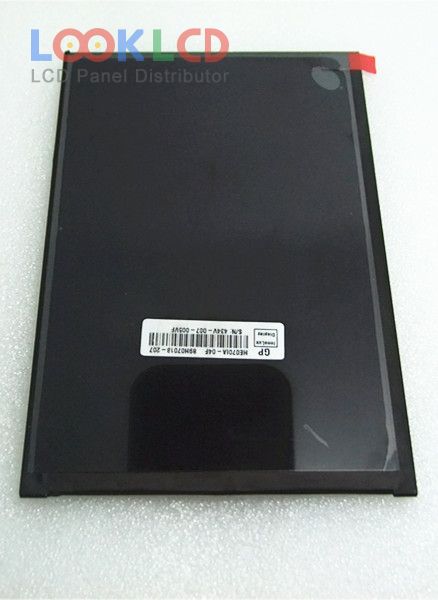

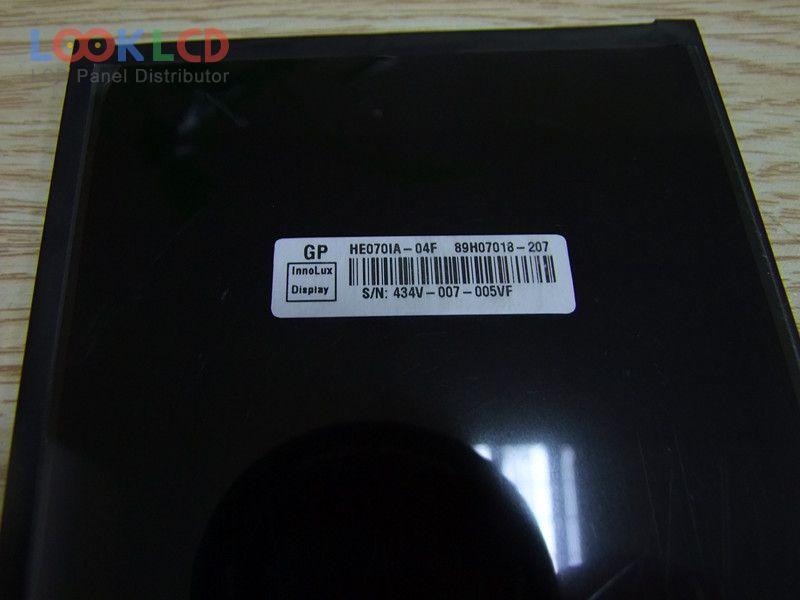

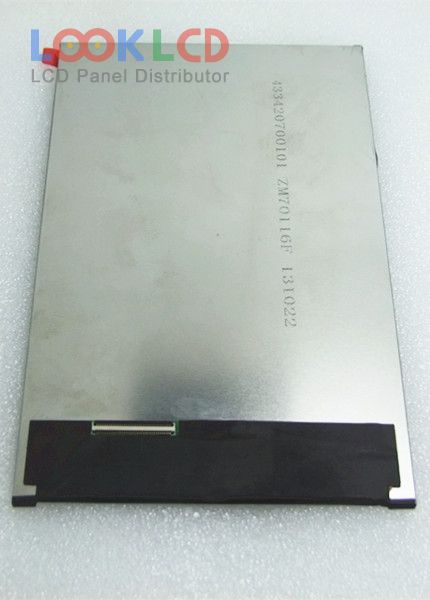

| Nambari ya Sehemu | HE070IA-04F |
| Chapa | Innolux |
| Ukubwa | 7.0 |
| Maombi | PAD |
| Azimio | 800×1280 |
| Muundo | CELL |
| Mwangaza | 0 |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | No B/L |
| Kiolesura | LVDS |
| chapa ya paneli | CHIMEI INNOLUX |
| mfano wa paneli | HE070IA-04F |
| aina ya paneli | a-Si TFT-LCD , CELL |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×1280 , WXGA |
| hali ya kuonyesha | IPS, Normally Black, Transmissive |
| eneo la kazi | 94.2×150.72 mm |
| muhtasari | 101.5×159.52×0.82 mm |
| uso | Hard coating |
| kioo kina | 0.25+0.25 mm |
| uhamishaji | 4.96% (Typ.)(with Polarizer) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 16.7M (8-bit), CIE193160% |
| wakati wa majibu | 50 (Typ.)(Tr+Td) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 40 pins |
| voltage ya pembejeo | 3.3/8.8/-7.0/22V (Typ.)(VDD/AVDD/VGH/VGL) |
| maombi | PAD |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| CLAA070LC0FCT | CPT | 7.0 | 800×480 |
| CLAA070NC0DCW | CPT | 7.0 | 1024×600 |
| COM70T7M17ZLC | ORTUSTECH | 7.0 | 800×480 |
| HE070IA-04F | Innolux | 7.0 | 800×1280 |
| HE070IA-04M | Innolux | 7.0 | 800×1280 |
| HE070IA-04R | Innolux | 7.0 | 800×1280 |
| LMS700KF07 | Samsung | 7.0 | 800×480 |
| LTA070B070F | TOSHIBA | 7.0 | 800×480 |
| LTL070NL01-002 | Samsung | 7.0 | 1024×600 |
| A090PAN01.0 | AUO | 9.0 | 900×1440 |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| HE070IA-04R | Innolux | 7.0 | 800×1280 |
| HT12X21-221 | HYDIS | 12.1 | 1024×768 |
| HV070WX2-1E0 | HYDIS | 7.0 | 800×1280 |
| LTL070NL02-W02 | Samsung | 7.0 | 1024×600 |
| LTL106HL01-001 | Samsung | 10.6 | 1920×1080 |
| M070SW46 R0 | IVO | 7.0 | 1200×1920 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
