Innolux HJ101IA-01F hifadhidata, vipimo, hisa, programu www.looklcd-mk.com

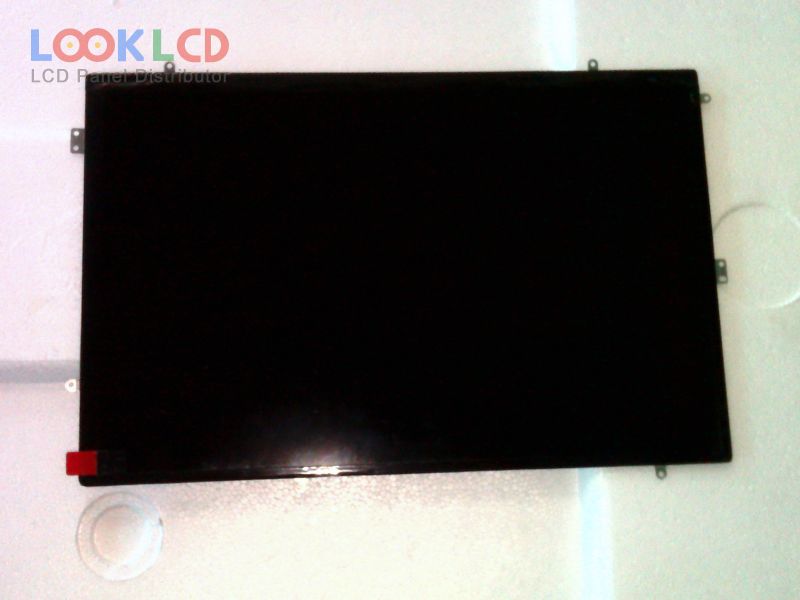

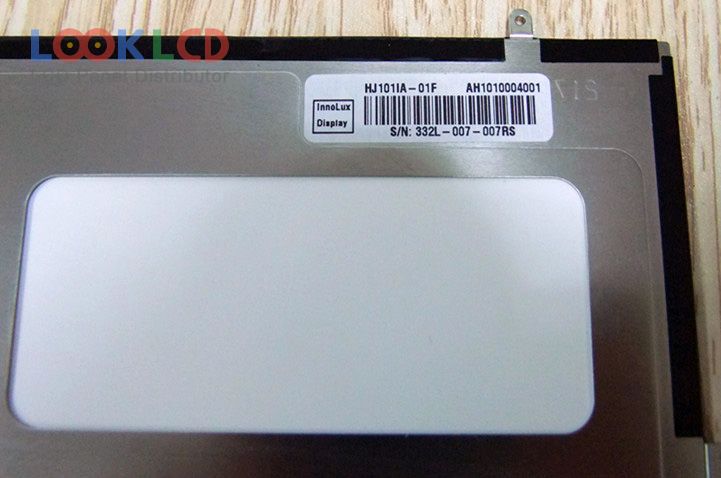

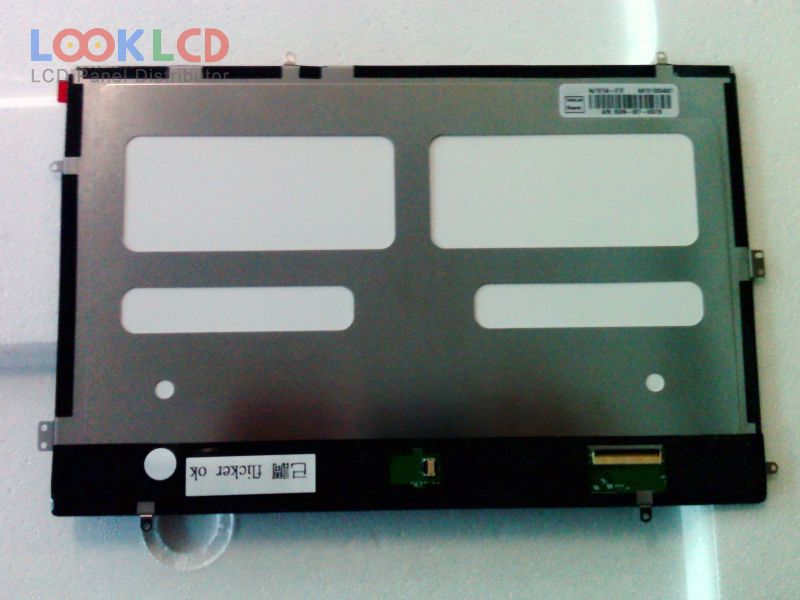

HJ101IA-01F


Chapa
Innolux
Ukubwa
10.1
Maombi
PAD
Azimio
1280×800
Muundo
LCM
Mwangaza
350
CR
800:1
Rangi
262K/16.7M
Mwangaza nyuma
WLED
Kiolesura
MIPI
In Stock
2280
Vipimo

Nambari ya Sehemu HJ101IA-01F
ChapaInnolux
Ukubwa10.1
MaombiPAD
Azimio1280×800
MuundoLCM
Mwangaza350
CR800:1
Rangi262K/16.7M
Mwangaza nyumaWLED
KiolesuraMIPI
chapa ya paneliCHIMEI INNOLUX
mfano wa paneliHJ101IA-01F
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli10.1 inch
azimio1280(RGB)×800 , WXGA
hali ya kuonyeshaIPS, Normally Black, Transmissive
eneo la kazi216.96×135.6 mm
muhtasari229.46×149.15×4.5 mm
usoAntiglare (Haze 25%), Hard coating (3H)
mwangaza350 cd/m² (Typ.)
uwiano wa utofautishaji800:1 (Typ.)
kuonyesha rangi262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150%
wakati wa majibu10/15 (Typ.)(Tr/Td)
angle ya kutazama80/80/80/80 (Typ.)(CR≥10)(L/R/U/D)
masafa60Hz
aina ya taa12S3PWLEDEmbedded (LED Driver)
kiolesura cha isharaMIPI (4 data lanes)
voltage ya pembejeo3.7V (Typ.)
maombiPAD
