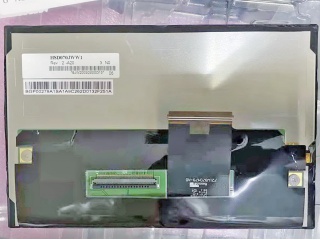

| Nambari ya Sehemu | HSD070JWW1-A20 |
| Chapa | HannStar |
| Ukubwa | 7.0 |
| Maombi | Automotive Display |
| Azimio | 1280×768 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | HannStar |
| saizi ya paneli | 7.0" |
| azimio | 1280(RGB)×768, WXGA, 213PPI |
| eneo la maonyesho | 152.448(W)×91.4688(H) mm |
| mwangaza | - |
| angle ya kutazama | - |
| mwonekano bora zaidi | Symmetry |
| kuonyesha rangi | 16.7M |
| masafa | 60Hz |
| uzito wa paneli | - |
| kiolesura cha ishara | LVDS (1 ch, 8-bit) + SPI , 60 pins FPC |
| voltage ya pembejeo | 3.3V (Typ.) |
| mazingira | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| mfano wa paneli | HSD070JWW1-A20 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| muundo wa pixel | RGB Vertical Stripe |
| ufunguzi wa bezel | - |
| uwiano wa utofautishaji | 1000:1 (Min.) (TM) |
| hali ya kuonyesha | IPS Pro, Normally Black, Transmissive |
| wakati wa majibu | 25 (Max.)(Tr+Td) |
| aina ya taa | WLED |
| skrini ya kugusa | - |
| maombi | Automotive Display |
