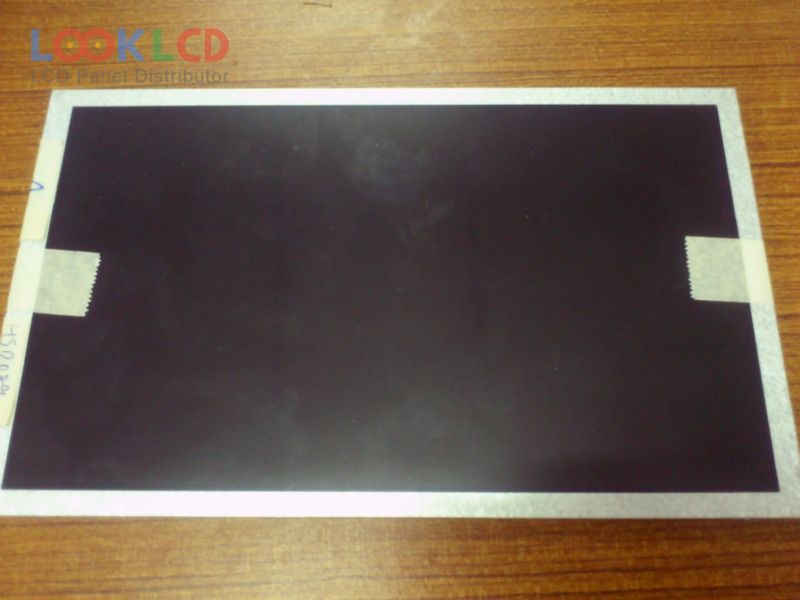

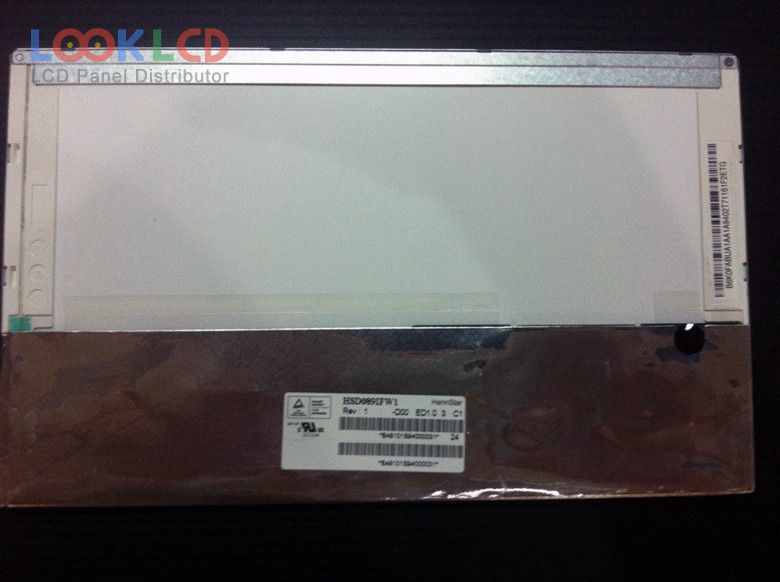

| Nambari ya Sehemu | HSD089IFW1-D00 |
| Chapa | HannStar |
| Ukubwa | 8.9 |
| Maombi | MP4 |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 300 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | HannStar |
| mfano wa paneli | HSD089IFW1-D00 2 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.9 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 195.072×113.4 mm |
| muhtasari | 213.36×129.55×5.45 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 5/20 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 30 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | MP4 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| CLAA070LC0ECT | CPT | 7.0 | 800×480 |
| CLAA070ND22CW | CPT | 7.0 | 1024×600 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| DLC0700EZG-T-2 | Other | 7.0 | 800×480 |
| LB070WV4-TD02 | LG Display | 7.0 | 800×480 |
| LMS430HF19 | Samsung | 4.3 | 480×272 |
| LMS700JF01-001 | Samsung | 7.0 | 1024×600 |
| TM050RBH01 | Tianma | 5.0 | 800×480 |
