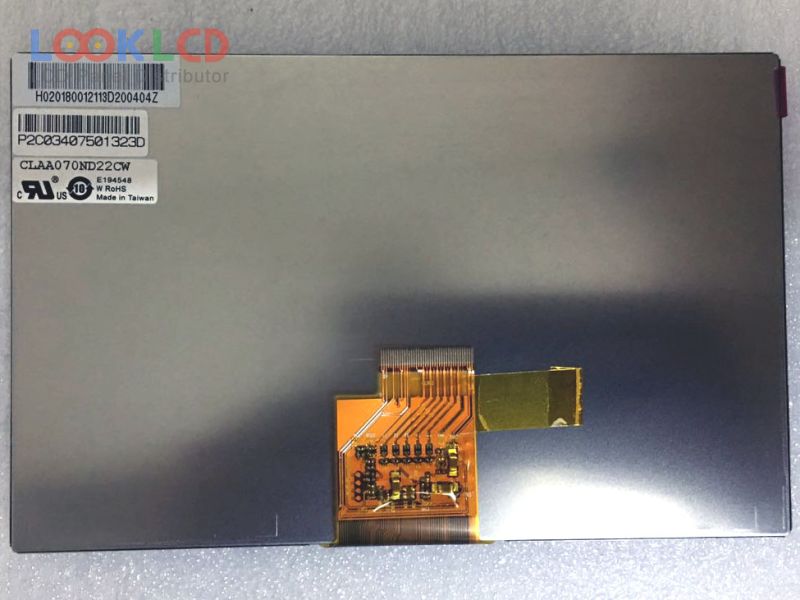

| Nambari ya Sehemu | CLAA070ND22CW |
| Chapa | CPT |
| Ukubwa | 7.0 |
| Maombi | MP4 |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 700:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | CPT |
| mfano wa paneli | CLAA070ND22CW |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 153.6×90 mm |
| muhtasari | 165.75×105.39×3.5 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 700:1 (Typ.) |
| kuonyesha rangi | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S8PWLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6/8-bit), 40 pins |
| voltage ya pembejeo | 3.3/9.6/18/-6V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maombi | MP4 |
