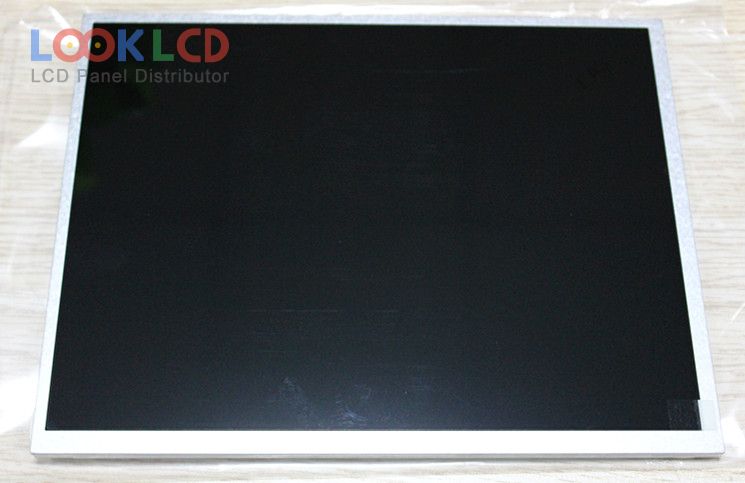

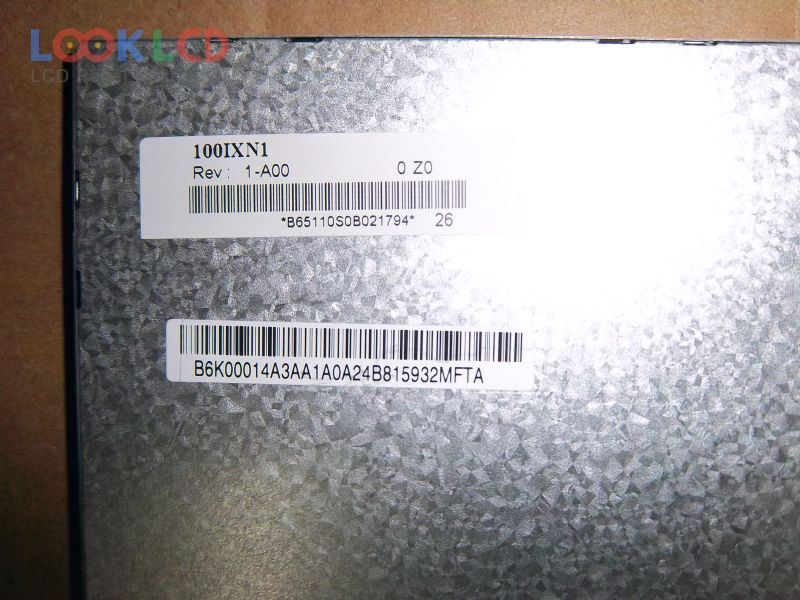

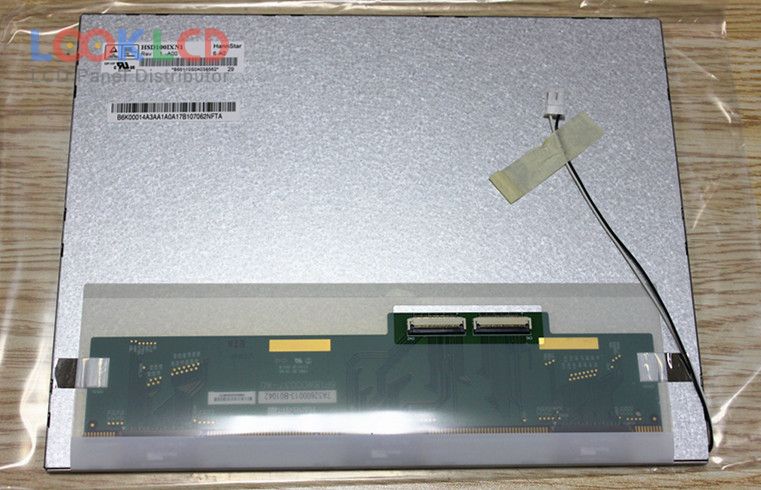

| Nambari ya Sehemu | HSD100IXN1-A00 |
| Chapa | HannStar |
| Ukubwa | 10.0 |
| Maombi | DPF |
| Azimio | 1024×768 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 600:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | HannStar |
| mfano wa paneli | HSD100IXN1-A00 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.0 inch |
| azimio | 1024(RGB)×768 , XGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 202.752×152.064 mm |
| muhtasari | 215.5×166.5 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 2.4/5.6(Typ.)(Tr/Td) |
| angle ya kutazama | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S11PWLEDWithout Driver |
| kiolesura cha ishara | TTL (1 ch, 6-bit), 60 pins |
| voltage ya pembejeo | 3.3/9.48/17/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| maombi | DPF |
