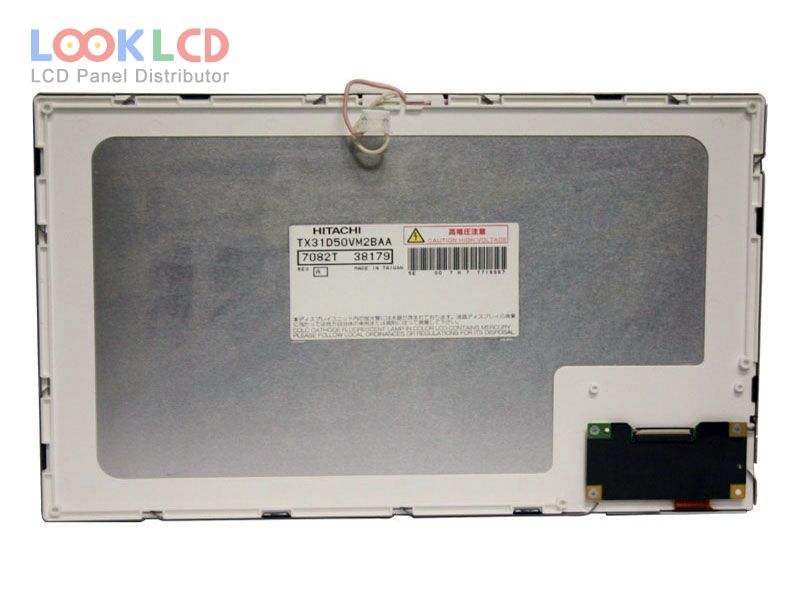

| Nambari ya Sehemu | TX31D50VM2BAA |
| Chapa | KOE |
| Ukubwa | 12.0 |
| Maombi | DPF |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 350:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | HITACHI |
| mfano wa paneli | TX31D50VM2BAA |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 12.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 261.6×156.96 mm |
| muhtasari | 283×173.8 mm |
| uso | |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 350:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193170% |
| wakati wa majibu | |
| angle ya kutazama | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 1 pcsCCFL |
| kiolesura cha ishara | CMOS (1 ch, 6-bit) |
| voltage ya pembejeo | 3.3V (Typ.) |
| rohs: | |
| maombi | DPF |
