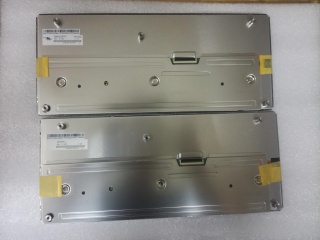

| Nambari ya Sehemu | HSD123JPW1-A20 |
| Chapa | HannStar |
| Ukubwa | 12.3 |
| Maombi | Outdoor High Brightn |
| Azimio | 1920×720 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 11S4P |
| Kiolesura | LVDS |
| chapa ya paneli | HannStar |
| mfano wa paneli | HSD123JPW1-A20 |
| saizi ya paneli | 12.3" |
| aina ya paneli | a-Si TFT-LCD, LCM |
| azimio | 1920(RGB)×720, 167PPI |
| muundo wa pixel | RGB Vertical Stripe |
| eneo la maonyesho | 292.032(W)×109.512(H) mm |
| ufunguzi wa bezel | 294.8(W)×112.1(H) mm |
| saizi ya muhtasari | 308.1(W)×130(H) ×16.6(D) mm |
| uso | Antiglare |
| mwangaza | 850 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000:1 (Typ.) (TM) |
| angle ya kutazama | 85/85/85/85 (Typ.)(CR≥10) |
| hali ya kuonyesha | IPS Pro, Normally Black, Transmissive |
| mwonekano bora zaidi | Symmetry |
| wakati wa majibu | 18/17 (Typ.)(Tr/Td) |
| kuonyesha rangi | 16.7M 70% NTSC |
| aina ya taa | 11S4P WLED , 30K hours , Without Driver |
| masafa | 60Hz |
| skrini ya kugusa | Without |
| uzito wa paneli | 520g (Typ.) |
| maombi | Outdoor High Brightness Automotive Display |
| kiolesura cha ishara | LVDS (2 ch, 8-bit) , 50 pins Connector |
| voltage ya pembejeo | 3.3V (Typ.) |
| mazingira | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
