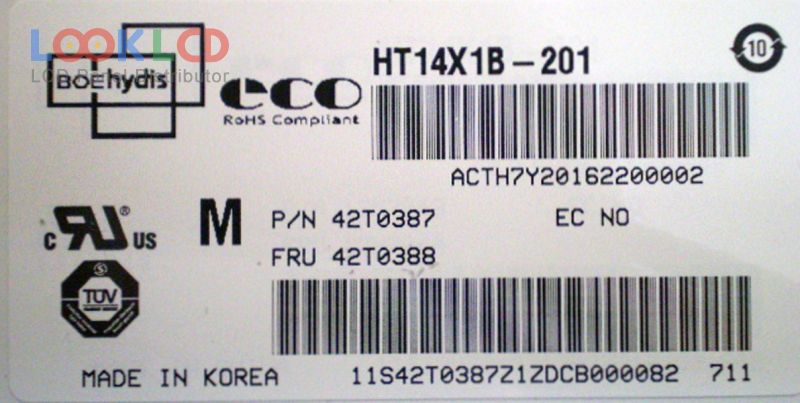

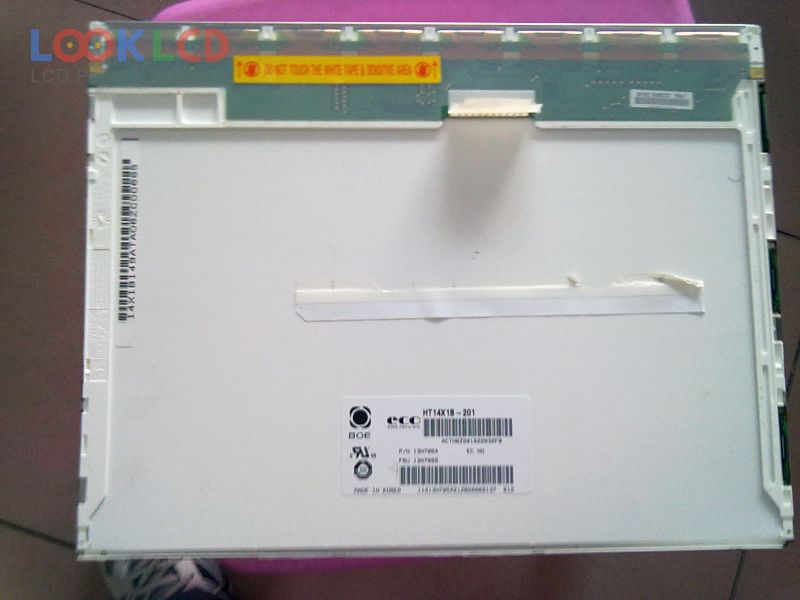

| Nambari ya Sehemu | HT14X1B-201 |
| Chapa | HYDIS |
| Ukubwa | 14.1 |
| Maombi | NBPC |
| Azimio | 1024×768 |
| Muundo | LCM |
| Mwangaza | 150 |
| CR | 200:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | BOE HYDIS |
| mfano wa paneli | HT14X1B-201 2 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 14.1 inch |
| azimio | 1024(RGB)×768 , XGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 285.696×214.272 mm |
| muhtasari | 299×228×5.5 mm |
| mtindo wa sura | Wedge (PCBA Bent, Depth ≥5.2mm) |
| uso | |
| mwangaza | 150 cd/m² (Typ.) |
| uwiano wa utofautishaji | 200:1 (Min.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 25/25 (Max.)(Tr/Td) |
| angle ya kutazama | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 30 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NBPC |
