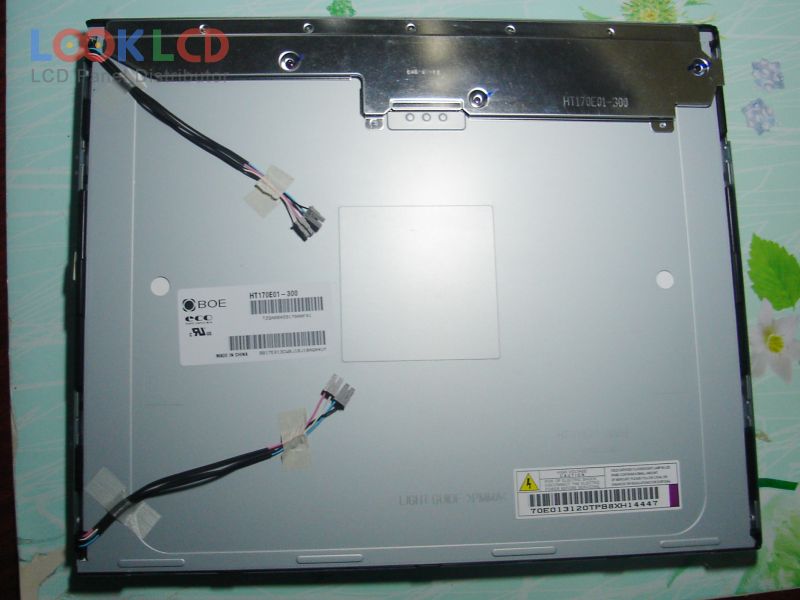

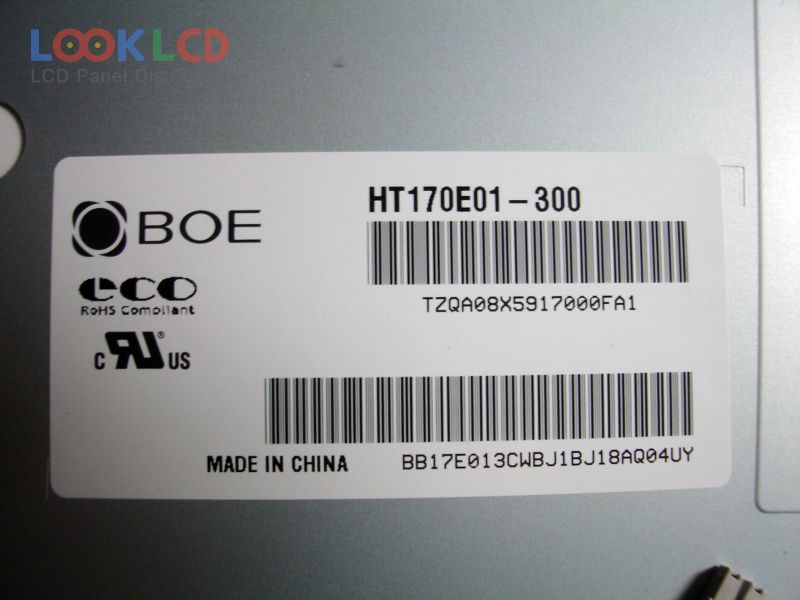

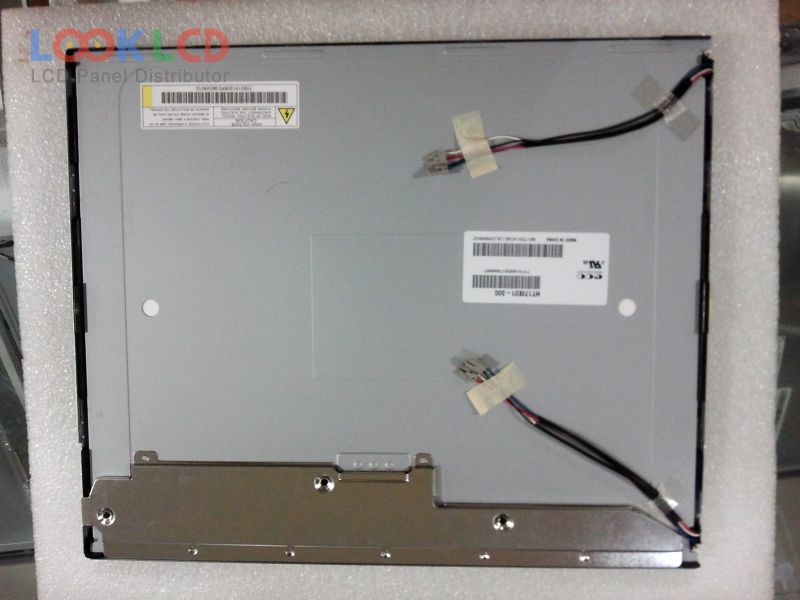

| Nambari ya Sehemu | HT170E01-300 |
| Chapa | BOE |
| Ukubwa | 17.0 |
| Maombi | DMPC |
| Azimio | 1280×1024 |
| Muundo | LCM |
| Mwangaza | 300 |
| CR | 800:1 |
| Rangi | 16.2M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | BOE |
| mfano wa paneli | HT170E01-300 2 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 17.0 inch |
| azimio | 1280(RGB)×1024 , SXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 337.92×270.336 mm |
| muhtasari | 358.5×296.5×17.5 mm |
| uso | Antiglare (Haze 25%), Hard coating (3H) |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 16.2M (6-bit + FRC), CIE193172% |
| wakati wa majibu | 1.5/3.5 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 4 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (2 ch, 8-bit), 30 pins |
| voltage ya pembejeo | 5.0V (Typ.) |
| maombi | DMPC |
| B170PW03 V5 | AUO | 17.0 | 1440×900 |
| G170ETN02.0 | AUO | 17.0 | 1280×1024 |
| HT170E01-300 | BOE | 17.0 | 1280×1024 |
| HT170E02-100 | BOE | 17.0 | 1280×1024 |
| HT170EX1-101 | BOE | 17.0 | 1280×1024 |
| HT170EX1-300 | BOE | 17.0 | 1280×1024 |
| LM170E01-A6 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLB1 | LG Display | 17.0 | 1280×1024 |
| LQ170M1LA12 | SHARP | 17.0 | 1920×1200 |
| LTN170CT08-D01 | Samsung | 17.0 | 1920×1200 |
| LM201WE4-TLB2 | LG Display | 20.1 | 1680×1050 |
| LM215WF3-SLN1 | LG Display | 21.5 | 1920×1080 |
| LM230WF3-SLB2 | LG Display | 23.0 | 1920×1080 |
| LQ170E1LG18 | SHARP | 17.0 | 1280×1024 |
| M170EG01 VF | AUO | 17.0 | 1280×1024 |
| M190EN04 V5 | AUO | 19.0 | 1280×1024 |
| M200RW01 V6 | AUO | 20.0 | 1600×900 |
| M260J3-L01 | Innolux | 25.5 | 1920×1200 |
| M270HW01 V1 | AUO | 27.0 | 1920×1080 |
| SVA156WX1-01TB | SVA-NEC | 15.6 | 1366×768 |
