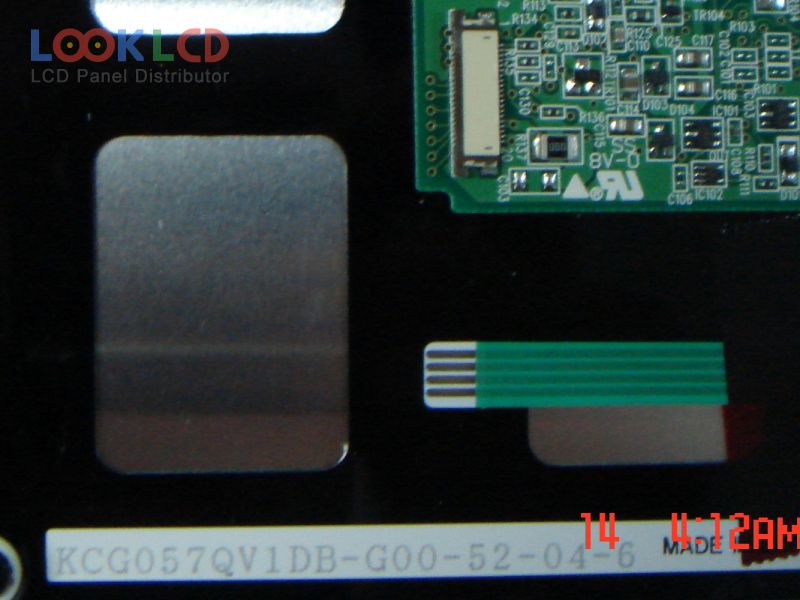

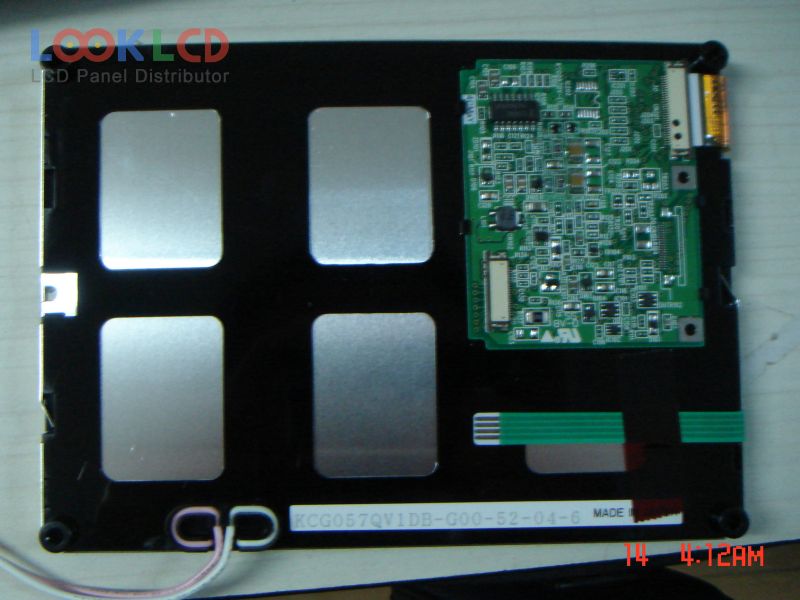

| Nambari ya Sehemu | KCG057QV1DB-G00 |
| Chapa | Kyocera |
| Ukubwa | 5.7 |
| Maombi | IA |
| Azimio | 320×240 |
| Muundo | LCM |
| Mwangaza | 160 |
| CR | 55:1 |
| Rangi | Color |
| Mwangaza nyuma | CCFL |
| Kiolesura | Parallel Data |
| chapa ya paneli | Kyocera |
| mfano wa paneli | KCG057QV1DB-G00 |
| aina ya paneli | CSTN-LCD , LCM |
| saizi ya paneli | 5.7 inch |
| azimio | 320(RGB)×240 , QVGA |
| hali ya kuonyesha | STN, Normally Black, Transmissive |
| eneo la kazi | 115.2×86.4 mm |
| muhtasari | 144×104.8×13.2 mm |
| uso | Glare (Haze 0%) |
| mwangaza | 160 cd/m² (Typ.) |
| uwiano wa utofautishaji | 55:1 (Typ.) |
| kuonyesha rangi | Color |
| wakati wa majibu | 190/170 (Typ.)(Tr/Td) |
| angle ya kutazama | 50/50/20/35 (Typ.)(CR≥2)(L/R/U/D) |
| masafa | 75Hz |
| aina ya taa | 1 pcsCCFLOptional |
| kiolesura cha ishara | Parallel Data (8-bit), 20 pins |
| voltage ya pembejeo | 3.3/5.0V (Typ.)(VDD) |
| maombi | IA |
| AA057VG12 | Mitsubishi | 5.7 | 640×480 |
| KCG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G500 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G56 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G760 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G77 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G03 | Kyocera | 5.7 | 320×240 |
| PD057VU4 | E Ink | 5.7 | 320×240 |
| SP14Q002-A1 | KOE | 5.7 | 320×240 |
| T78AAVGTF0 | Other | 5.7 | 320×240 |
| AM-1024768MTMQW-00H | AMPIRE | 10.4 | 1024×768 |
| EL320.240.36 ET CC | Lumineq | 5.7 | 320×240 |
| EL480.60.43 CC | PLANAR | 8.1 | 480×60 |
| G170EG01 V1 | AUO | 17.0 | 1280×1024 |
| G215HVN01.0 S11 | AUO | 21.5 | 1920×1080 |
| LQ150X1LG82 | SHARP | 15.0 | 1024×768 |
| LTA150B851F | TOSHIBA | 15.0 | 1024×768 |
| PD040QX2 | E Ink | 4.0 | 320×240 |
| RGS15128128YR000 | RiTdisplay | 1.5 | 128×128 |
| TM101DDHG03 | Tianma | 10.1 | 1024×600 |
