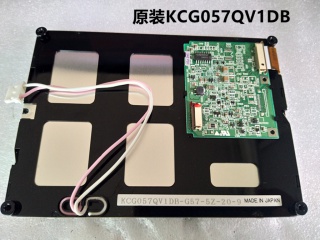

| Nambari ya Sehemu | KCG057QV1DB-G57 |
| Chapa | Kyocera |
| Ukubwa | 5.7 |
| Maombi | Industrial |
| Azimio | 320×240 |
| Muundo | CSTN-LCD, LCM |
| Mwangaza | |
| CR | 60:1 |
| Rangi | Color |
| Mwangaza nyuma | 1 |
| Kiolesura | |
| chapa ya paneli | Kyocera |
| mfano wa paneli | KCG057QV1DB-G57 |
| saizi ya paneli | 5.7" |
| aina ya paneli | CSTN-LCD, LCM |
| azimio | 320(RGB)×240, QVGA, 70PPI |
| muundo wa pixel | RGB Vertical Stripe |
| eneo la maonyesho | 115.2(W)×86.4(H) mm |
| ufunguzi wa bezel | - |
| mwangaza | - |
| uwiano wa utofautishaji | 60:1 (Typ.) (TM) |
| angle ya kutazama | 50/50/20/35 (Typ.)(CR≥2) |
| hali ya kuonyesha | STN, Normally Black, Transmissive |
| mwonekano bora zaidi | - |
| wakati wa majibu | 180/170 (Typ.)(Tr/Td) |
| kuonyesha rangi | Color |
| aina ya taa | 1 pcs CCFL , Optional |
| masafa | 75Hz |
| skrini ya kugusa | Without |
| uzito wa paneli | - |
| maombi | Industrial |
| mazingira | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| C555001 | SII | 5.7 | 320×240 |
| EL320.240.36 AGL | Lumineq | 5.7 | 320×240 |
| EL320.240.36 HB | Lumineq | 5.7 | 320×240 |
| EL320.240.36 HB SE | PLANAR | 5.7 | 320×240 |
| G057AGE-T01 | Innolux | 5.7 | 320×240 |
| KCG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G500 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G56 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G760 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G77 | Kyocera | 5.7 | 320×240 |
