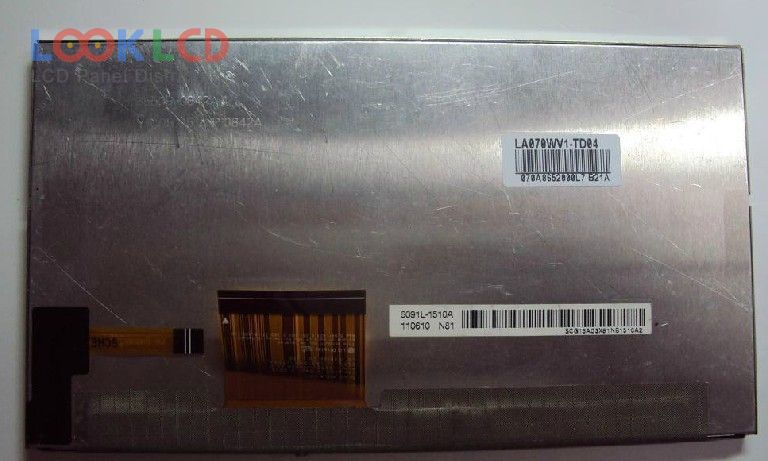

| Nambari ya Sehemu | LA070WV1-TD04 |
| Chapa | LG Display |
| Ukubwa | 7.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 500 |
| CR | 600:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | LG Display |
| mfano wa paneli | LA070WV1-TD04 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 156.24×82.368 mm |
| muhtasari | 167×93×7.5 mm |
| uso | Antiglare |
| mwangaza | 500 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 5/15 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 5S4PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 60 pins |
| voltage ya pembejeo | 3.3/10.0/18.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maombi | CNS |
