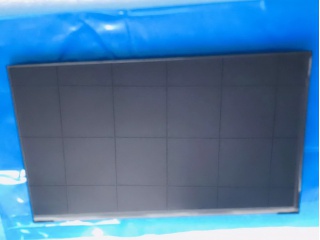

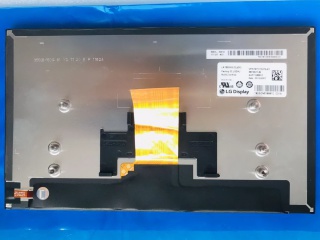

| Nambari ya Sehemu | LA102WH2-SL01 |
| Chapa | LG Display |
| Ukubwa | 10.2 |
| Maombi | Automotive Display |
| Azimio | 1280×720 |
| Muundo | LCM, a-Si TFT-LCD |
| Mwangaza | |
| CR | 800:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 10S4P |
| Kiolesura | LVDS |
| mtengenezaji | LG Display |
| jina la mfano | LA102WH2-SL01 |
| ukubwa wa skrini | 10.2 inch |
| aina ya skrini | LCM, a-Si TFT-LCD |
| nambari ya pixel | 1280(RGB)×720 (WXGA) 143PPI |
| mpangilio | RGB Vertical Stripe |
| eneo amilifu(mm) | 225.792 × 127.008 (H×V) |
| muhtasari(mm) | 238.62 × 141.5 (H×V×D) |
| eneo la bezel(mm) | 225.75 × 126.874 (H×V) |
| matibabu | Hard coating (3H) |
| mwangaza | 725 cd/m² (Min.) |
| uwiano wa utofautishaji | 800 : 1 (Min.) (TM) |
| angle ya kutazama | 89/89/89/89 (Min.)(CR≥10) |
| majibu | 30 (Max.)(Tr+Td) ms |
| mtazamo mzuri | Symmetry |
| hali ya kazi | IPS, Normally Black, Transmissive |
| kina cha rangi | 16.7M |
| backlight | 10S4P WLED , 10K hours , No Driver |
| wingi | 303/313g (Typ./Max.) |
| kutumika kwa | Automotive Display |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | Without |
| aina ya ishara | LVDS (1 ch, 8-bit) , FPC 64 pins |
| usambazaji wa voltage | 1.8/3.3/12.5/18.5/-7.5V (Typ.)(DVDD2/DVDD1/AVDD/VHG/VHL) |
| max. ukadiriaji | Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 3.16G (31.0 m/s²) |
| A102VW01 V7 | AUO | 10.2 | 800×480 |
| AT102TN03 V.3 | Innolux | 10.2 | 800×480 |
| CLAA102NA01CW | CPT | 10.2 | 1024×600 |
| CLAA102NA0ACG | CPT | 10.2 | 1024×600 |
| CLAA102NA0DCW | CPT | 10.2 | 1024×600 |
| CLAA102NB01XV | CPT | 10.2 | 1024×600 |
| EZ102AS181 | PDI | 10.2 | 1024×1280 |
| EZ102AT011 | PDI | 10.2 | 1024×1280 |
| PM102WX1 | E Ink | 10.2 | 800×480 |
| PM102ZY2 | E Ink | 10.2 | 1024×600 |
