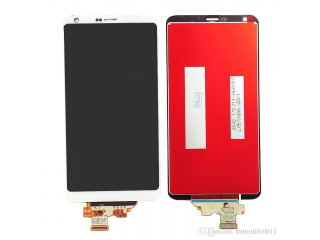

| Nambari ya Sehemu | LH570QH6-SD01 |
| Chapa | LG Display |
| Ukubwa | 5.7 |
| Maombi | Mobile Phone |
| Azimio | 1440×2880 |
| Muundo | Assembly , a-Si TF |
| Mwangaza | |
| CR | 1500:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 4S3P |
| Kiolesura | MIPI |
| mtengenezaji | LG Display |
| ukubwa wa skrini | 5.7 inch |
| nambari ya pixel | 1440(RGB)×2880 564PPI |
| eneo amilifu(mm) | 64.8 × 129.6 (H×V) |
| eneo la bezel(mm) | - |
| mwangaza | 500 cd/m² (Typ.) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10) |
| mtazamo mzuri | Symmetry |
| kina cha rangi | 16.7M 85% NTSC |
| wingi | 26.6±2.7g |
| kiwango cha upya | 60Hz |
| aina ya ishara | MIPI (4 data lanes) , 54 pins Connector |
| usambazaji wa voltage | 1.8/3.3/5.5/-5.5V (Typ.)(VDDI/VPNL/DDVDL/DDVDH) |
| max. ukadiriaji | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| jina la mfano | LH570QH6-SD01 |
| aina ya skrini | Assembly , a-Si TFT-LCD |
| mpangilio | RGB Vertical Stripe |
| muhtasari(mm) | 68.72 × 145.7 (H×V×D) |
| matibabu | Hard coating |
| uwiano wa utofautishaji | 1500 : 1 (Typ.) (TM) |
| majibu | 25 (Typ.)(Tr+Td) ms |
| hali ya kazi | - |
| backlight | 4S3P WLED , No Driver |
| kutumika kwa | Mobile Phone |
| skrini ya kugusa | PCAP |
