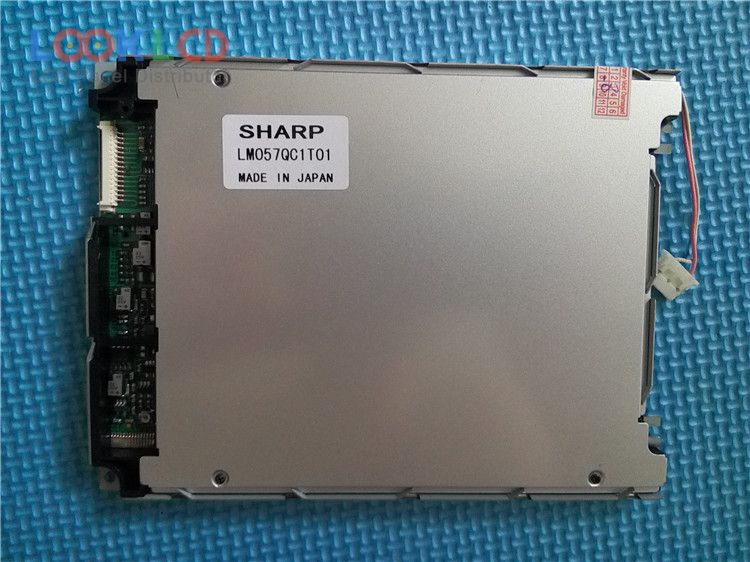

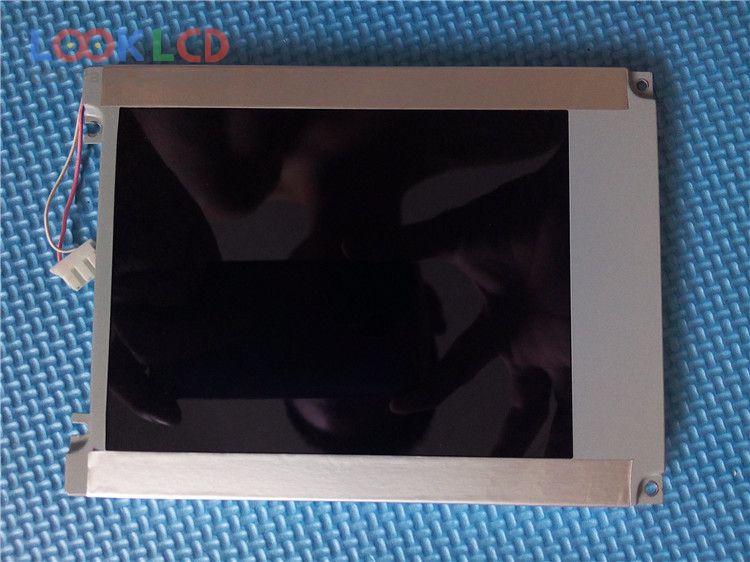

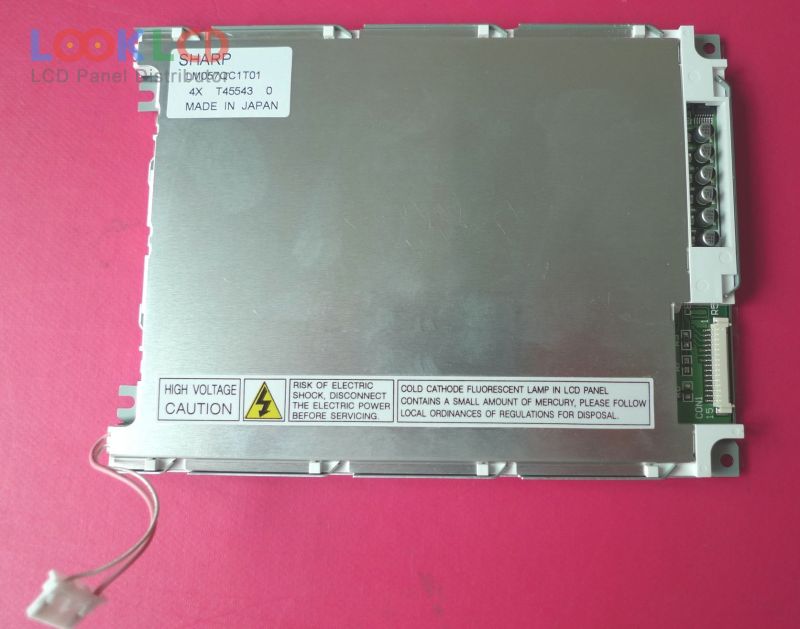

| Nambari ya Sehemu | LM057QC1T01 |
| Chapa | SHARP |
| Ukubwa | 5.7 |
| Maombi | IA |
| Azimio | 320×240 |
| Muundo | LCM |
| Mwangaza | 180 |
| CR | 40:1 |
| Rangi | Color |
| Mwangaza nyuma | CCFL |
| Kiolesura | Parallel Data |
| chapa ya paneli | SHARP |
| mfano wa paneli | LM057QC1T01 |
| aina ya paneli | CSTN-LCD , LCM |
| saizi ya paneli | 5.7 inch |
| azimio | 320(RGB)×240 , QVGA |
| hali ya kuonyesha | STN, Normally Black, Transmissive |
| eneo la kazi | 115.2×86.4 mm |
| muhtasari | 154.6×114.8 mm |
| uso | |
| mwangaza | 180 cd/m² (Typ.) |
| uwiano wa utofautishaji | 40:1 (Typ.) |
| kuonyesha rangi | Color |
| wakati wa majibu | 450/100 (Typ.)(Tr/Td) |
| angle ya kutazama | 50/50/35/60 (Typ.)(CR≥2)(L/R/U/D) |
| masafa | 75Hz |
| aina ya taa | 1 pcsCCFLWithout Driver |
| kiolesura cha ishara | Parallel Data (8-bit), 15 pins |
| voltage ya pembejeo | 3.3/5.0V (Typ.)(VDD) |
| maombi | IA |
| AA057QD01 | Mitsubishi | 5.7 | 320×240 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| DMF-50174ZNB-FW | Kyocera | 5.7 | 320×240 |
| EL320.240.36 HB SE | PLANAR | 5.7 | 320×240 |
| KCS057QV1AJ-G39 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G02 | Kyocera | 5.7 | 320×240 |
| LM057QB1T073 | SHARP | 5.7 | 320×240 |
| LM057QB1T09 | SHARP | 5.7 | 320×240 |
| LM057QC1T01 | SHARP | 5.7 | 320×240 |
| TM057QVHG01 | Tianma | 5.7 | 640×480 |
| AA065VD01 | Mitsubishi | 6.5 | 640×480 |
| DLH1095 | LiteMax | 10.4 | 1024×768 |
| EL320.240.36 LK | Lumineq | 5.7 | 320×240 |
| MD480T640PG4 | Panasonic | 11.3 | 640×480 |
| NL6448AC33-15 | NLT | 10.4 | 640×480 |
| RGS24128064YW005 | RiTdisplay | 2.4 | 128×64 |
| T-55562D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
| TM057KDHG10 | Tianma | 5.7 | 320×240 |
| TX38D18VM2BAA REV.B | KOE | 15.0 | 1024×768 |
| UG-5664ASGGF01 | WiseChip | 5.5 | 256×64 |
