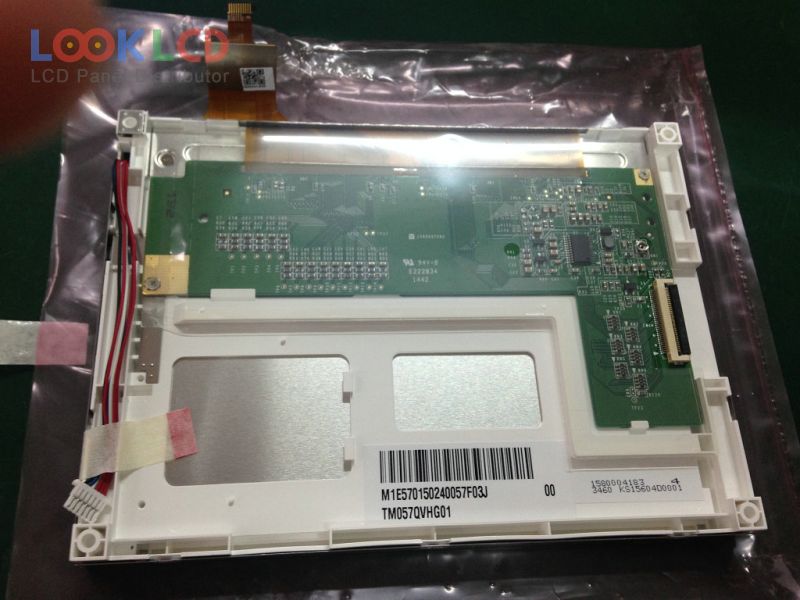

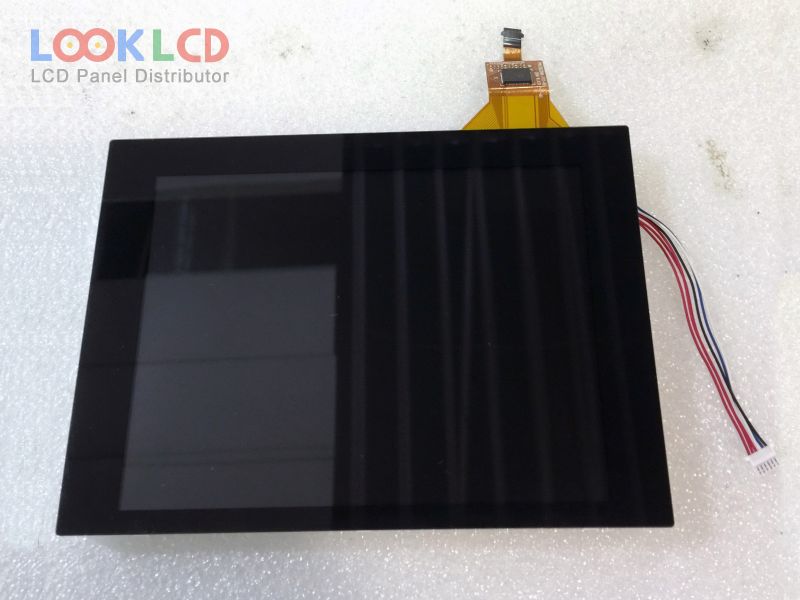

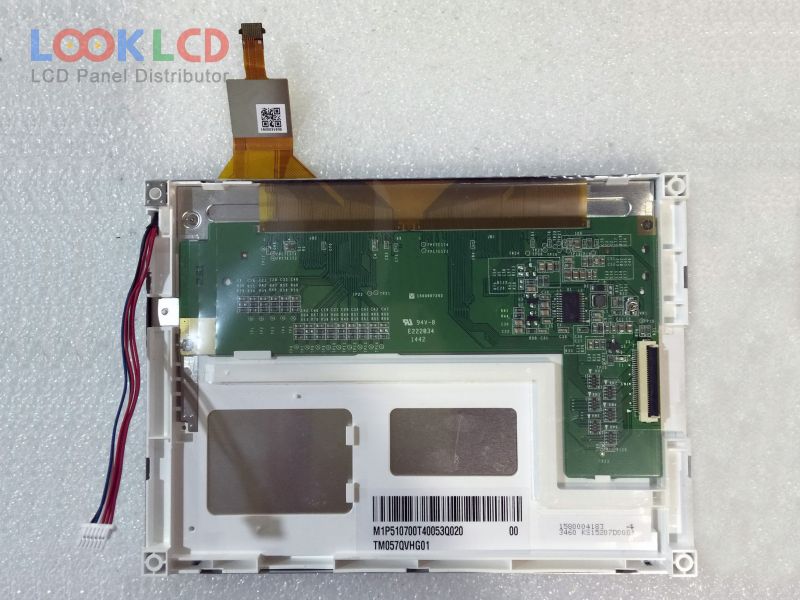

| Nambari ya Sehemu | TM057QVHG01 |
| Chapa | Tianma |
| Ukubwa | 5.7 |
| Maombi | IA |
| Azimio | 640×480 |
| Muundo | LCM |
| Mwangaza | 300 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | TIANMA |
| mfano wa paneli | TM057QVHG01 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 5.7 inch |
| azimio | 640(RGB)×480 , VGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 115.2×86.4 mm |
| muhtasari | 144×104.6×14.15 mm |
| uso | |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193150% |
| wakati wa majibu | 20 (Typ.)(Tr+Td) |
| angle ya kutazama | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 7S3PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 33 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
