LG Display LM185WH1-TLF1 hifadhidata, vipimo, hisa, programu www.looklcd-mk.com

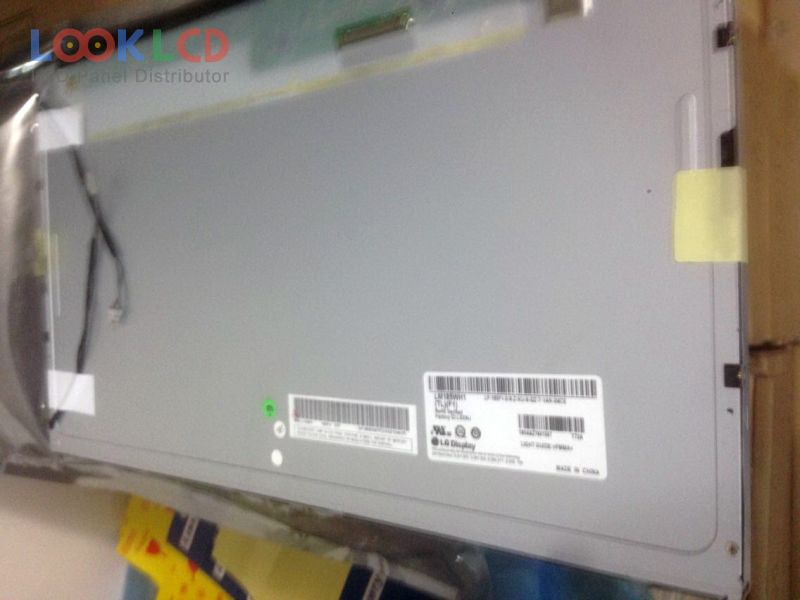

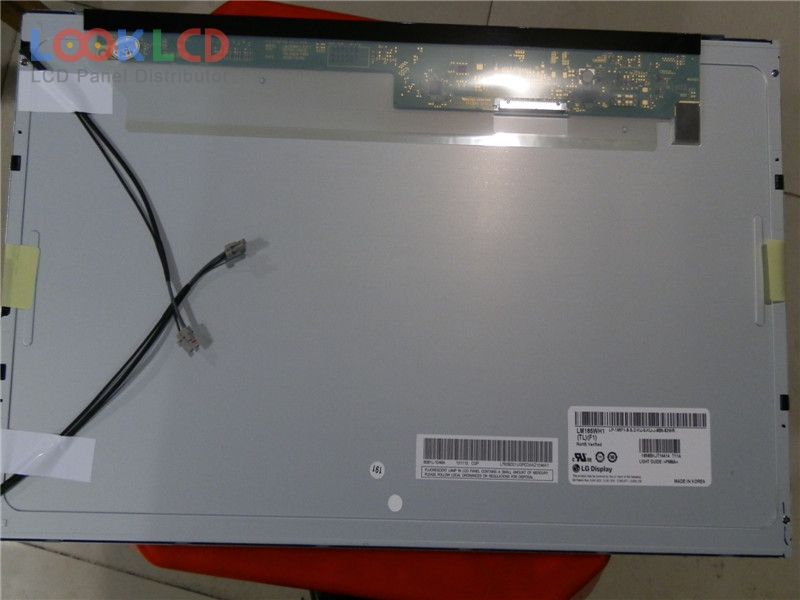

LM185WH1-TLF1


Chapa
LG Display
Ukubwa
18.5
Maombi
DMPC
Azimio
1366×768
Muundo
LCM
Mwangaza
250
CR
1000:1
Rangi
16.7M
Mwangaza nyuma
CCFL
Kiolesura
LVDS
In Stock
11803
Vipimo

Nambari ya Sehemu LM185WH1-TLF1
ChapaLG Display
Ukubwa18.5
MaombiDMPC
Azimio1366×768
MuundoLCM
Mwangaza250
CR1000:1
Rangi16.7M
Mwangaza nyumaCCFL
KiolesuraLVDS
chapa ya paneliLG Display
mfano wa paneliLM185WH1-TLF1
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli18.5 inch
azimio1366(RGB)×768 , WXGA
hali ya kuonyeshaTN, Normally White, Transmissive
eneo la kazi409.8×230.4 mm
muhtasari430.4×254.6×13.5 mm
usoAntiglare, Hard coating (3H)
mwangaza250 cd/m² (Typ.)
uwiano wa utofautishaji1000:1 (Typ.)
kuonyesha rangi16.7M (6-bit + Hi-FRC), CIE193172%
wakati wa majibu1.1/3.9 (Typ.)(Tr/Td)
angle ya kutazama85/85/75/85 (Typ.)(CR≥10)(L/R/U/D)
masafa60Hz
aina ya taa2 pcsCCFLWithout Driver
kiolesura cha isharaLVDS (2 ch, 8-bit), 30 pins
voltage ya pembejeo5.0V (Typ.)
maombiDMPC
Mfano wa Familia
LM185WH1-TLA1 LG Display 18.5 1366×768
LM185WH1-TLC5 LG Display 18.5 1366×768
LM185WH1-TLD1 LG Display 18.5 1366×768
LM185WH1-TLD3 LG Display 18.5 1366×768
LM185WH1-TLF1 LG Display 18.5 1366×768
LM185WH1-TLF4 LG Display 18.5 1366×768
LM185WH2-T2BB LG Display 18.5 1366×768
LM185WH2-TLA1 LG Display 18.5 1366×768
LM185WH2-TLD1 LG Display 18.5 1366×768
LM185WH2-TLE2 LG Display 18.5 1366×768
