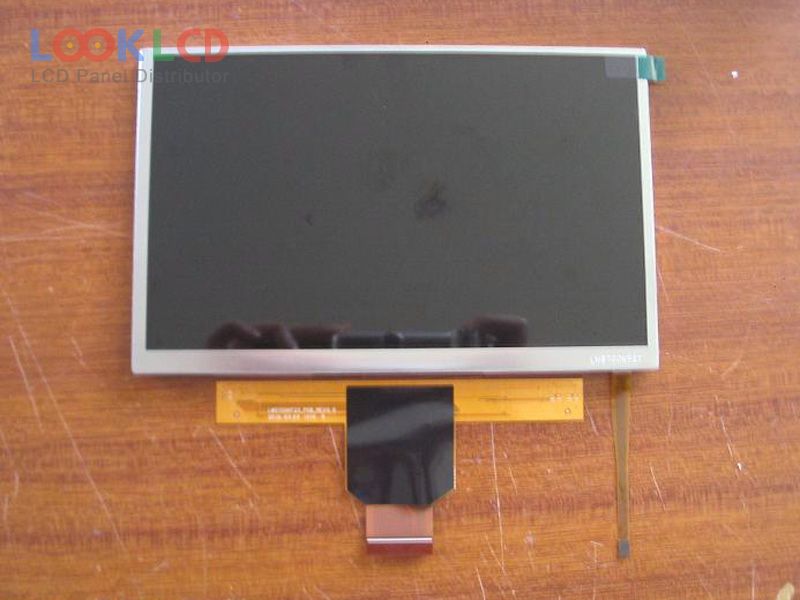

| Nambari ya Sehemu | LMS700KF23 |
| Chapa | Samsung |
| Ukubwa | 7.0 |
| Maombi | MP4 |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 350 |
| CR | 700:1 |
| Rangi | 16.2M |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | SAMSUNG SMD |
| mfano wa paneli | LMS700KF23 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, TMR |
| eneo la kazi | 152.4×91.44 mm |
| muhtasari | 163.2×104×3.6 mm |
| uso | |
| mwangaza | 350 cd/m² (Typ.) |
| uwiano wa utofautishaji | 700 : 1 (Typ.) |
| kuonyesha rangi | 16.2M (6-bit + FRC) |
| wakati wa majibu | 16 (Typ.)(Tr+Td) |
| angle ya kutazama | 70/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 8S3PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 8-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.)(VCC) |
| maombi | MP4 |
