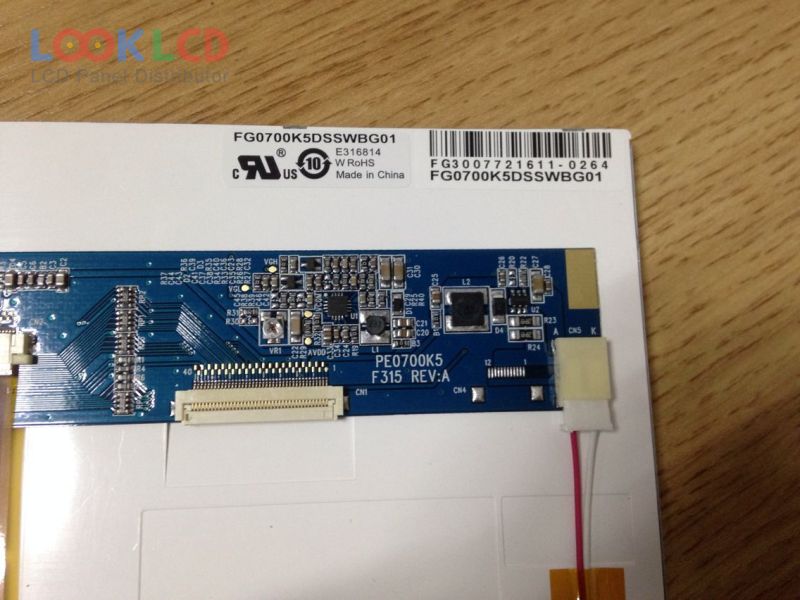

| Nambari ya Sehemu | FG0700K5DSSWBG01 |
| Chapa | Data Image |
| Ukubwa | 7.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 500 |
| CR | 400:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | Data Image |
| mfano wa paneli | FG0700K5DSSWBG01 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 152.4×91.44 mm |
| muhtasari | 165×104.44×9.7 mm |
| uso | Antiglare |
| mwangaza | 500 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 5/11 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S8PWLEDEmbedded (LED Driver) |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.)(VCC) |
| maombi | CNS |
| AT070TN84 V.1 | Innolux | 7.0 | 800×480 |
| B070ATN02.0 | AUO | 7.0 | 600×1024 |
| C070VVN03.3 | AUO | 7.0 | 800×480 |
| CLAA070LH01AW | CPT | 7.0 | 800×480 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| FG0700K5DSSWBG01 | Data Image | 7.0 | 800×480 |
| HV070WS1-1E2 | HYDIS | 7.0 | 1024×600 |
| LA070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LA070WV1-TD04 | LG Display | 7.0 | 800×480 |
| NL8048AC19-13 | NLT | 7.0 | 800×480 |
| AM-1024600-070H | Other | 7.0 | 1024×600 |
| AM-800480STMQW-00 | AMPIRE | 7.0 | 800×480 |
| AV080WSM-NW3 | BOE | 8.0 | 1024×600 |
| C080VW02 V0 | AUO | 8.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| DLC0700CZG-6 | Other | 7.0 | 800×480 |
| FG0700K5DSSWBG01 | Data Image | 7.0 | 800×480 |
| G070Y2-T02 | Innolux | 7.0 | 800×480 |
| LB080WV3-A3 | LG Display | 8.0 | 800×480 |
| LTA061B2E0F | TOSHIBA | 6.1 |
