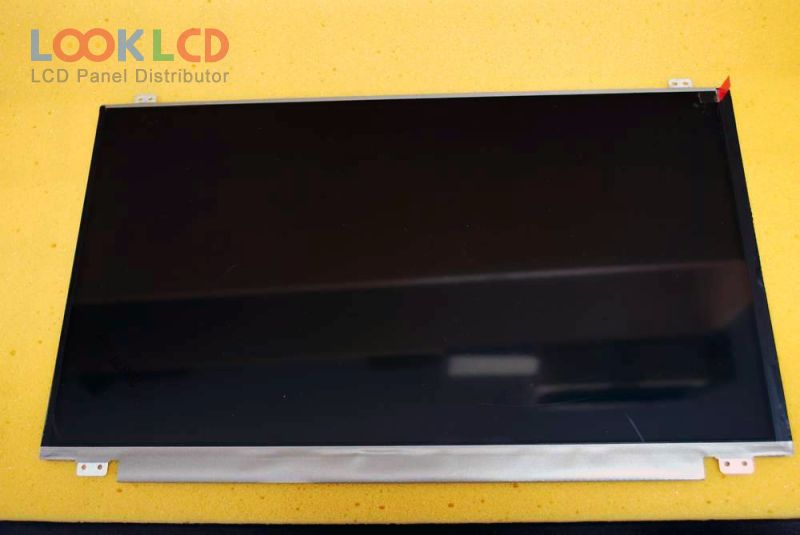

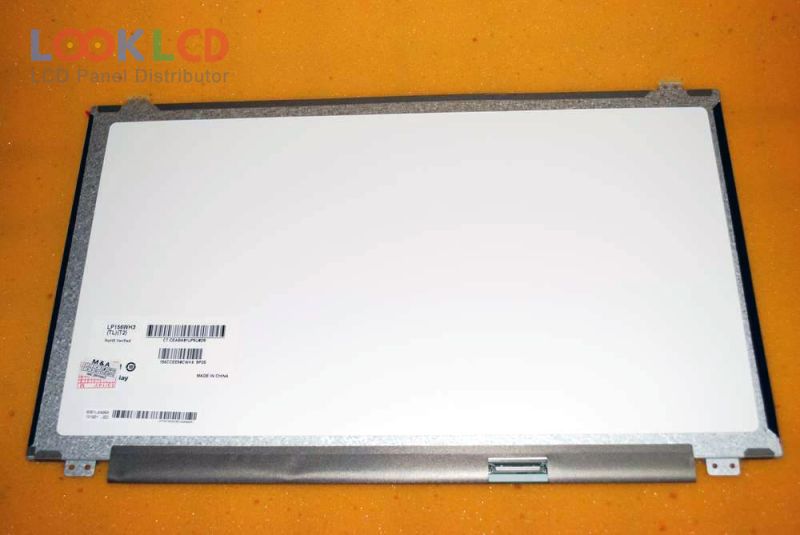

LP156WH3-TLT2

LP156WH3-TLT2
LP156WH3-TLT2
LP156WH3-TLT2 thumb LP156WH3-TLT2 thumb
Chapa
LG Display
Ukubwa
15.6
Maombi
NBPC
Azimio
1366×768
Muundo
LCM
Mwangaza
200
CR
350:1
Rangi
262K
Mwangaza nyuma
WLED
Kiolesura
LVDS
In Stock
301
Vipimo

Nambari ya Sehemu LP156WH3-TLT2
ChapaLG Display
Ukubwa15.6
MaombiNBPC
Azimio1366×768
MuundoLCM
Mwangaza200
CR350:1
Rangi262K
Mwangaza nyumaWLED
KiolesuraLVDS
chapa ya paneliLG Display
mfano wa paneliLP156WH3-TLT2
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli15.6 inch
azimio1366(RGB)×768 , WXGA
hali ya kuonyeshaTN, Normally White, Transmissive
eneo la kazi344.232×193.536 mm
muhtasari359.5×217.2×3.8 mm
mtindo wa suraFlat (PCBA Flat, Depth 3.4~4.0mm)
usoAntiglare
mwangaza200 cd/m² (Typ.)
uwiano wa utofautishaji350:1 (Typ.)
kuonyesha rangi262K (6-bit), CIE193145%
wakati wa majibu16 (Typ.)(Tr+Td)
angle ya kutazama45/45/15/35 (Typ.)(CR≥10)(L/R/U/D)
masafa60Hz
aina ya taaWLEDEmbedded (LED Driver)
kiolesura cha isharaLVDS (1 ch, 6-bit), 40 pins
voltage ya pembejeo3.3V (Typ.)
maombiNBPC
