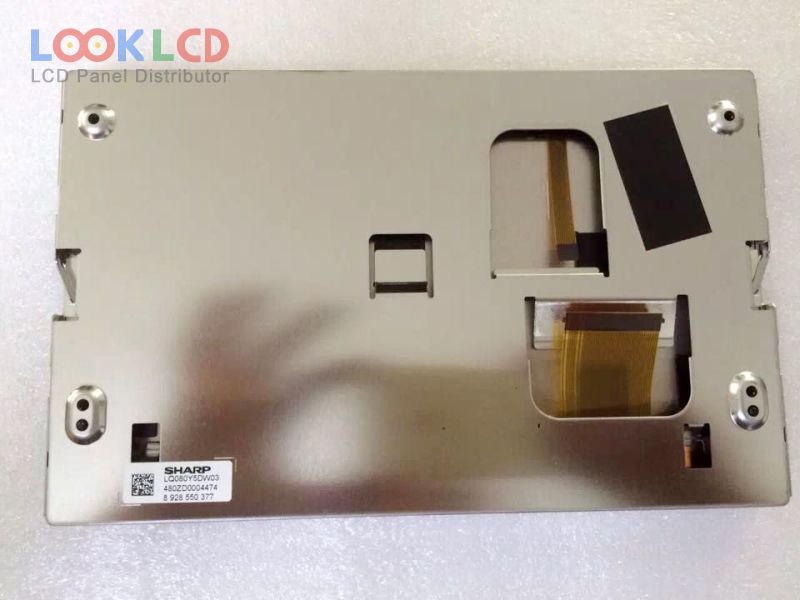

| Nambari ya Sehemu | LQ080Y5DG03 |
| Chapa | SHARP |
| Ukubwa | 8.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 540 |
| CR | |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | SHARP |
| mfano wa paneli | LQ080Y5DG03 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 174×104.4 mm |
| muhtasari | 190×120 mm |
| uso | |
| mwangaza | 540 cd/m² (Typ.) |
| uwiano wa utofautishaji | |
| kuonyesha rangi | 262K (6-bit), CIE193165% |
| wakati wa majibu | |
| angle ya kutazama | |
| aina ya taa | WLED |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit) |
| maombi | CNS |
| LQ080T3AG01 | SHARP | 8.0 | 480×234 |
| LQ080T5GG01B | SHARP | 8.0 | 480×234 |
| LQ080V3DG01 | SHARP | 8.0 | 640×480 |
| LQ080Y5CGQ1 | SHARP | 8.0 | 800×480 |
| LQ080Y5DG02 | SHARP | 8.0 | 800×480 |
| LQ080Y5DR01 | SHARP | 8.0 | 800×480 |
| LQ080Y5DW03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DW30 | SHARP | 8.0 | 800×480 |
| LQ080Y5DZ03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DZ30A | SHARP | 8.0 | 800×480 |
| AT102TN03 V.8 | Innolux | 10.2 | 800×480 |
| C070FW02 V0 | AUO | 7.0 | 480×234 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| LA070WV5-SL01 | LG Display | 7.0 | 800×480 |
| LQ058T5DG30 | SHARP | 5.8 | 480×240 |
| LQ058T5DR02 | SHARP | 5.8 | 480×272 |
| LTA070B052F | TOSHIBA | 7.0 | 800×480 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
| PM061WX1 | E Ink | 6.1 | 800×480 |
| YX-CM043-QN05-56 | 4.3 | 480×272 |
