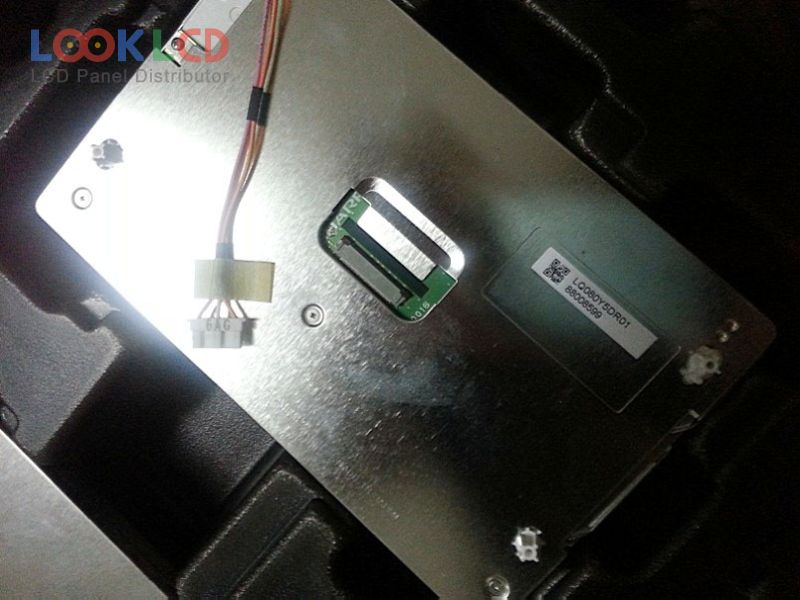

| Nambari ya Sehemu | LQ080Y5DR01 |
| Chapa | SHARP |
| Ukubwa | 8.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 625 |
| CR | 100:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | SHARP |
| mfano wa paneli | LQ080Y5DR01 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 174×104.4 mm |
| muhtasari | 190×120 mm |
| uso | Antiglare, Antireflection |
| mwangaza | 625 cd/m² (Typ.) |
| uwiano wa utofautishaji | 100:1 (Min.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 30/50 (Typ.)(Tr/Td) |
| angle ya kutazama | 65/65/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | CNS |
| LQ080T3AG01 | SHARP | 8.0 | 480×234 |
| LQ080T5GG01B | SHARP | 8.0 | 480×234 |
| LQ080V3DG01 | SHARP | 8.0 | 640×480 |
| LQ080Y5CGQ1 | SHARP | 8.0 | 800×480 |
| LQ080Y5CGQ2 | SHARP | 8.0 | 800×480 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DR01 | SHARP | 8.0 | 800×480 |
| LQ080Y5DW03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DW30 | SHARP | 8.0 | 800×480 |
| LQ080Y5DZ03 | SHARP | 8.0 | 800×480 |
| AT102TN03 V.3 | Innolux | 10.2 | 800×480 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| CLAA070LH01AW | CPT | 7.0 | 800×480 |
| LA058WQ1-SD01 | LG Display | 5.8 | 400×240 |
| LB058WQ1-SD02 | LG Display | 5.8 | 400×240 |
| LB070WQ4-TM06 | LG Display | 7.0 | 480×234 |
| LB080WV3-A3 | LG Display | 8.0 | 800×480 |
| LQ070T5AR01 | SHARP | 7.0 | 480×234 |
| LQ070Y5DG20 | SHARP | 7.0 | 800×480 |
| LTA070B792F | TOSHIBA | 7.0 | 800×480 |
