| Nambari ya Sehemu | LW700AT9901 |
| Chapa | Innolux |
| Ukubwa | 7.0 |
| Maombi | DPF |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 300 |
| CR | 400:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | CHIMEI INNOLUX |

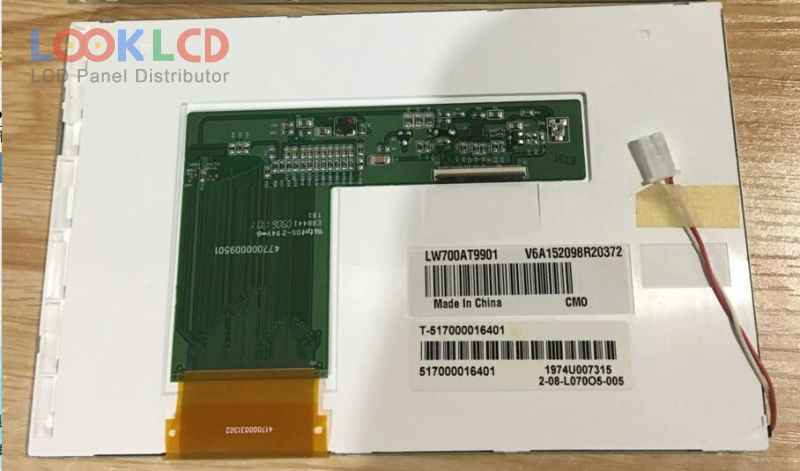

| mfano wa paneli | LW700AT9901 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 152.4×91.44 mm |
| muhtasari | 165×104×7.09 mm |
| uso | |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193145% |
| wakati wa majibu | 3/15 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S8PWLEDWithout Driver |
| kiolesura cha ishara | TTL (1 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| rohs: | |
| maombi | DPF |
| AM-800480RCTMQW-00H | AMPIRE | 7.0 | 800×480 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| CLAA070LF05CW | CPT | 7.0 | 800×480 |
| HV070WS1-1E2 | HYDIS | 7.0 | 1024×600 |
| LD070WS1-SL02 | LG Display | 7.0 | 1024×600 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| LW700AT9901 | Innolux | 7.0 | 800×480 |
| A101VW01 V1 | AUO | 10.1 | 800×480 |
| AT080TN52 V.1 | Innolux | 8.0 | 800×600 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| HSD100IFW1-C01 | HannStar | 10.1 | 1024×600 |
| HSD100IFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| LB070WV1-TD07 | LG Display | 7.0 | 800×480 |
| PA079DS1T2 | E Ink | 7.9 | 480×234 |
| TM080SV-04L01 | SANYO | 8.0 | 800×600 |
