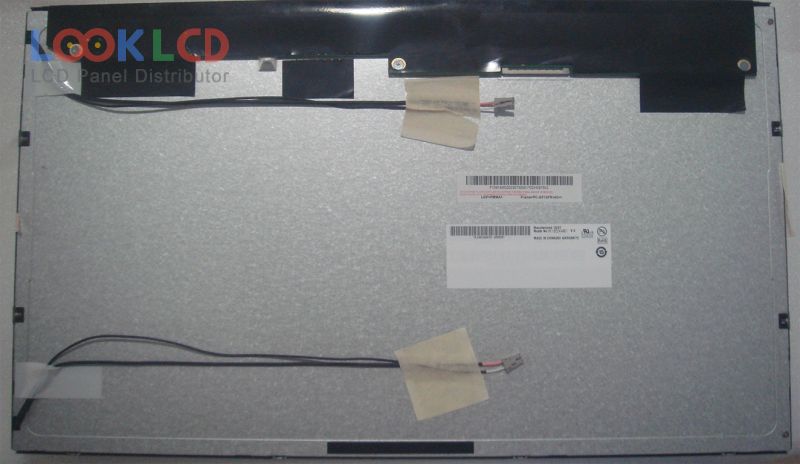

| Nambari ya Sehemu | M185XW01 V3 |
| Chapa | AUO |
| Ukubwa | 18.5 |
| Maombi | DMPC |
| Azimio | 1366×768 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | AUO |
| mfano wa paneli | M185XW01 V3 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 18.5 inch |
| azimio | 1366(RGB)×768 , WXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 409.8×230.4 mm |
| muhtasari | 430.4×254.6×12.3 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC), CIE193167% |
| wakati wa majibu | 3.6/1.4 (Typ.)(Tr/Td) |
| angle ya kutazama | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 8-bit), 30 pins |
| voltage ya pembejeo | 5.0V (Typ.) |
| maombi | DMPC |
