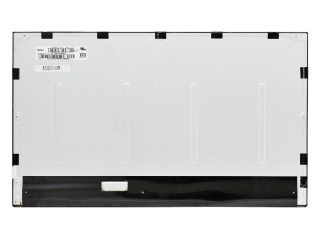

| Nambari ya Sehemu | M230HCJ-L3N Rev.C1 |
| Chapa | Innolux |
| Ukubwa | 23.0 |
| Maombi | Desktop Monitor |
| Azimio | 1920×1080 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 4 |
| Kiolesura | LVDS |
| chapa ya paneli | Innolux |
| mfano wa paneli | M230HCJ-L3N Rev.C1 |
| saizi ya paneli | 23.0" |
| aina ya paneli | a-Si TFT-LCD, LCM |
| azimio | 1920(RGB)×1080, FHD, 95PPI |
| muundo wa pixel | RGB Vertical Stripe |
| eneo la maonyesho | 509.184(W)×286.416(H) mm |
| ufunguzi wa bezel | 512.38(W)×289.62(H) mm |
| saizi ya muhtasari | 522.38(W)×305.62(H) mm |
| uso | Antiglare (Haze 25%), Hard coating (3H) |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000:1 (Typ.) (TM) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10) |
| hali ya kuonyesha | AAS, Normally Black, Transmissive |
| mwonekano bora zaidi | Symmetry |
| wakati wa majibu | 8/7 (Typ.)(Tr/Td) |
| kuonyesha rangi | 16.7M 72% NTSC |
| aina ya taa | 4 strings WLED , Without Driver |
| masafa | 60Hz |
| skrini ya kugusa | Without |
| uzito wa paneli | 1.96/2.06/2.23Kgs (Min./Typ./Max.) |
| maombi | Desktop Monitor |
| kiolesura cha ishara | LVDS (2 ch, 8-bit) , 30 pins Connector |
| voltage ya pembejeo | 5.0V (Typ.) |
| mazingira | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
