Innolux N101ICG-L21 Rev.C1 hifadhidata, vipimo, hisa, programu www.looklcd-mk.com
LookLCD LookLCD

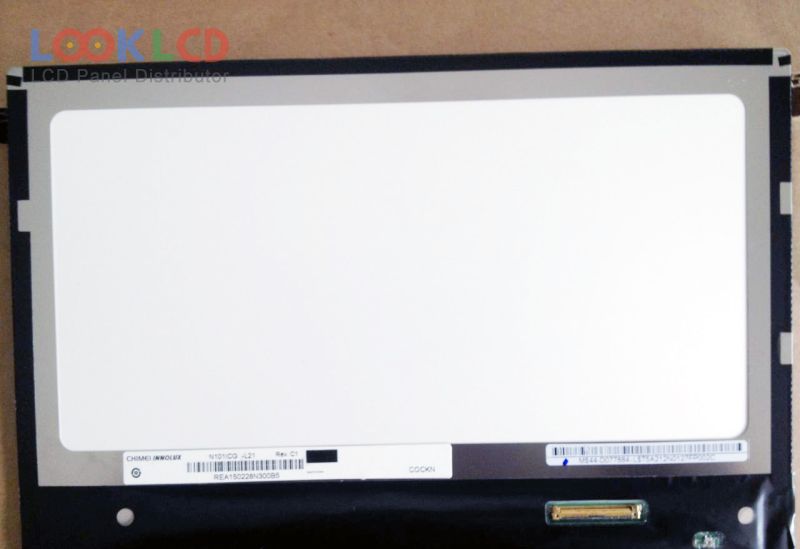

N101ICG-L21 Rev.C1

N101ICG-L21 Rev.C1
N101ICG-L21 Rev.C1 thumb
Chapa
Innolux
Ukubwa
10.1
Maombi
PAD
Azimio
1280×800
Muundo
LCM
Mwangaza
350
CR
800:1
Rangi
262K
Mwangaza nyuma
WLED
Kiolesura
LVDS
In Stock
3180
Vipimo

Nambari ya Sehemu N101ICG-L21 Rev.C1
ChapaInnolux
Ukubwa10.1
MaombiPAD
Azimio1280×800
MuundoLCM
Mwangaza350
CR800:1
Rangi262K
Mwangaza nyumaWLED
KiolesuraLVDS
chapa ya paneliCMO
mfano wa paneliN101ICG-L21 Rev.C1 2 Compatible model
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli10.1 inch
azimio1280(RGB)×800 , WXGA
hali ya kuonyeshaAAS, Normally Black, Transmissive
eneo la kazi216.96×135.6 mm
muhtasari227.42×147.69×4.85 mm
usoGlare (Haze 0%), Hard coating (3H)
mwangaza350 cd/m² (Typ.)
uwiano wa utofautishaji800:1 (Typ.)
kuonyesha rangi262K (6-bit), CIE193150%
wakati wa majibu14/11 (Typ.)(Tr/Td)
angle ya kutazama85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
masafa60Hz
aina ya taa3 stringsWLEDEmbedded (LED Driver)
kiolesura cha isharaLVDS (1 ch, 6-bit), 40 pins
voltage ya pembejeo3.3V (Typ.)
maombiPAD
Mfano wa Familia
BP101WX1-210 BOE 10.1 1280×800
HSD101PWW1-B00 HannStar 10.1 1280×800
HSD101PWW1-F01 HannStar 10.1 1280×800
HSD101PWW1-G10 HannStar 10.1 1280×800
N101ICG-L11 Innolux 10.1 1280×800
N101ICG-L21 Rev.A1 Innolux 10.1 1280×800
N101ICG-L21 Rev.B1 Innolux 10.1 1280×800
N101ICG-L21 Rev.C1 Innolux 10.1 1280×800
N101ICG-L21 Rev.C2 Innolux 10.1 1280×800
VVX10F002A00 Panasonic 10.1 1920×1200
