| Nambari ya Sehemu | N156B6-L3D |
| Chapa | Innolux |
| Ukubwa | 15.6 |
| Maombi | NBPC |
| Azimio | 1366×768 |
| Muundo | LCM |
| Mwangaza | 220 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | CHIMEI INNOLUX |

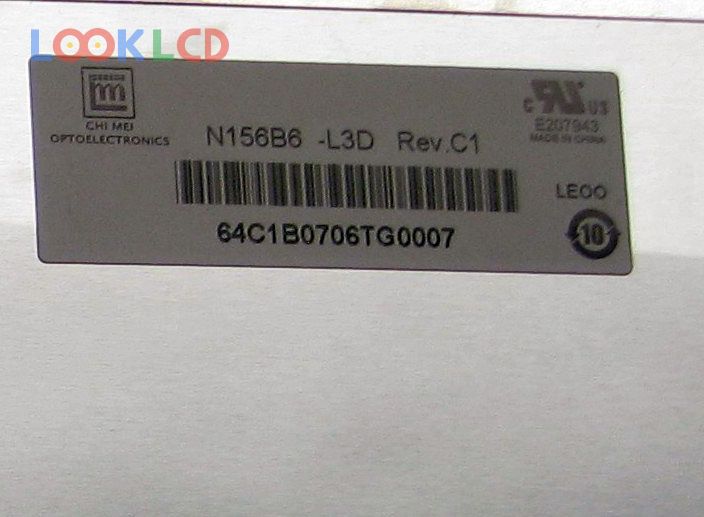

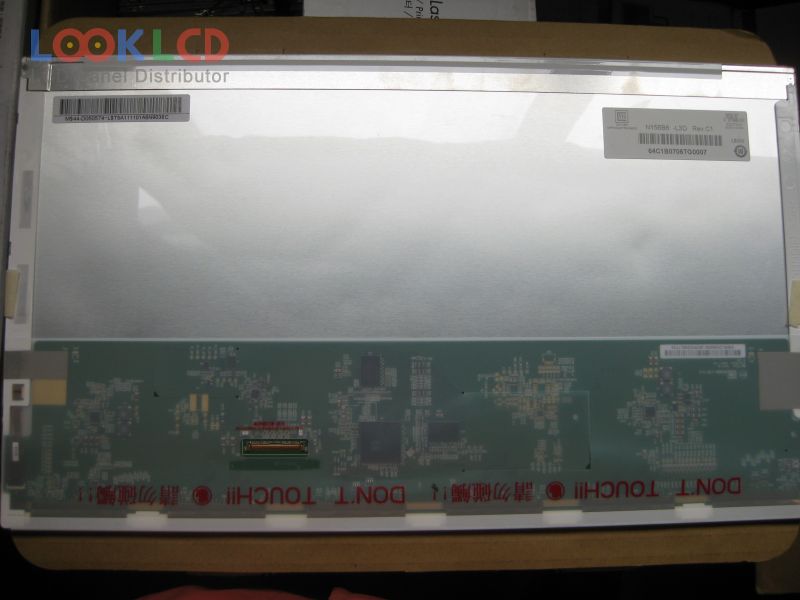

| mfano wa paneli | N156B6-L3D |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 15.6 inch |
| azimio | 1366(RGB)×768 , WXGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 344.232×193.536 mm |
| muhtasari | 359.3×209.5×6.2 mm |
| mtindo wa sura | Wedge (PCBA Bent, Depth ≥5.2mm) |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 220 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit) |
| wakati wa majibu | 2/4 (Typ.)(Tr/Td) |
| angle ya kutazama | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 120Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (2 ch, 6-bit), 40 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NBPC |
| N156B3-L01 | Innolux | 15.6 | 1366×768 |
| N156B3-L0B | Innolux | 15.6 | 1366×768 |
| N156B6-L06 | Innolux | 15.6 | 1366×768 |
| N156B6-L3D | Innolux | 15.6 | 1366×768 |
| N156BGE-E41 | Innolux | 15.6 | 1366×768 |
| N156BGE-EB1 | Innolux | 15.6 | 1366×768 |
| N156BGE-L11 | Innolux | 15.6 | 1366×768 |
| N156BGE-L21 | Innolux | 15.6 | 1366×768 |
| N156BGE-L51 | Innolux | 15.6 | 1366×768 |
| N156BGE-L62 | Innolux | 15.6 | 1366×768 |
| B133EW03 V1 | AUO | 13.3 | 1280×800 |
| B170PW03 V1 | AUO | 17.0 | 1440×900 |
| LP140WF1-SPJ1 | LG Display | 14.0 | 1920×1080 |
| LTD104EA5W | TOSHIBA | 10.4 | 1024×768 |
| LTN140AT22-W02 | Samsung | 14.0 | 1366×768 |
| LTN156AT35-W01 | Samsung | 15.6 | 1366×768 |
| LTN160AT01-W01 | Samsung | 16.0 | 1366×768 |
| N125HCE-GN1 | Innolux | 12.5 | 1920×1080 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| QD14FL02 Rev.01 | QDI | 14.1 | 1400×1050 |
