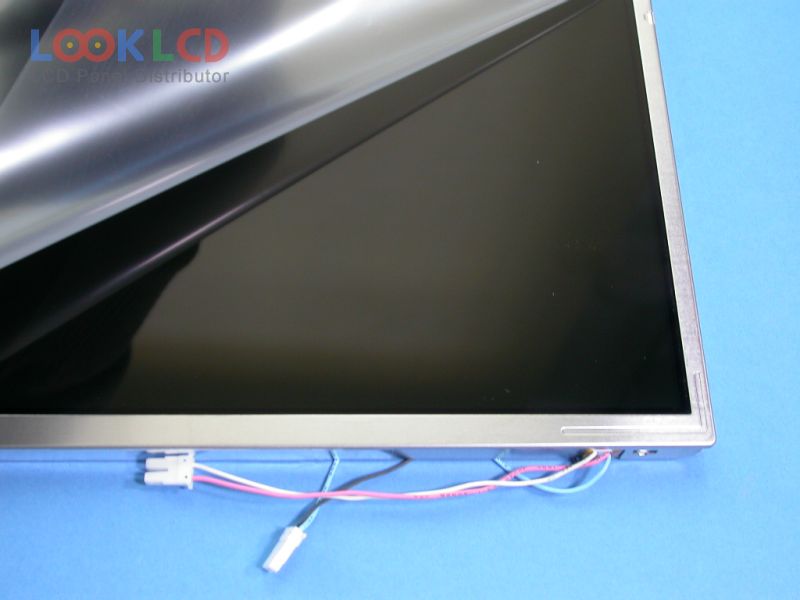

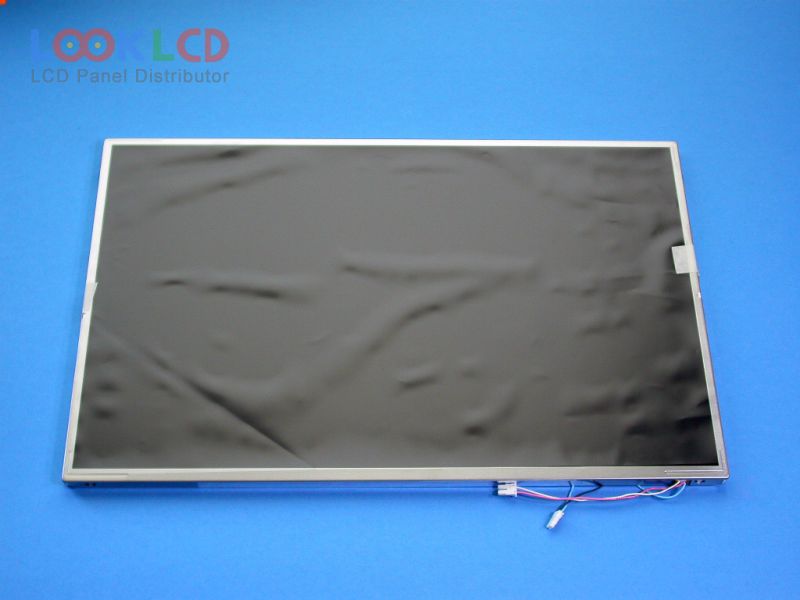

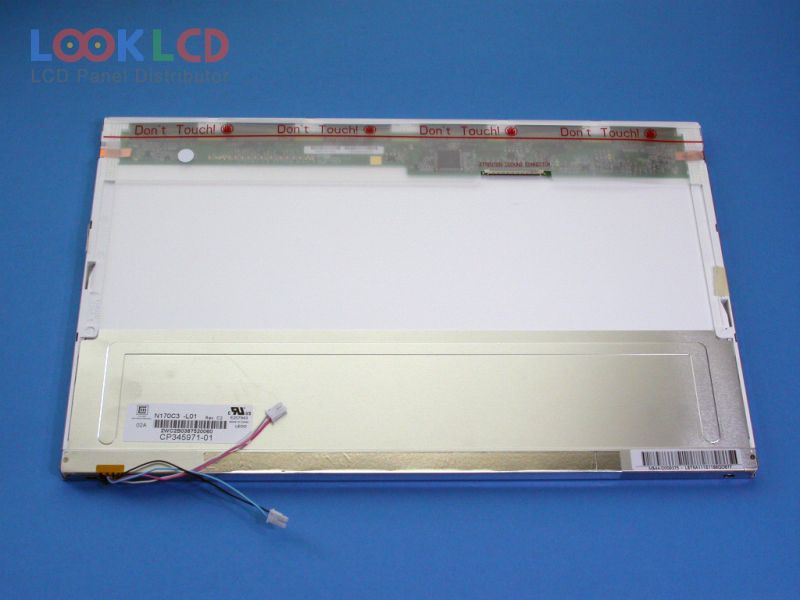

| Nambari ya Sehemu | N170C3-L01 |
| Chapa | Innolux |
| Ukubwa | 17.0 |
| Maombi | NBPC |
| Azimio | 1440×900 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 600:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | CMO |
| mfano wa paneli | N170C3-L01 3 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 17.0 inch |
| azimio | 1440(RGB)×900 , WXGA+ |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 367.2×229.5 mm |
| muhtasari | 382.2×246.8×10 mm |
| mtindo wa sura | Wedge (PCBA Bent, Depth ≥5.2mm) |
| uso | Glare (Haze 0%), Hard coating (3H) |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193172% |
| wakati wa majibu | 3/7 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (2 ch, 6-bit), 30 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | NBPC |
| B170PW07 V0 | AUO | 17.0 | 1440×900 |
| LM170E01-A4 | LG Display | 17.0 | 1280×1024 |
| LM170E01-A6 | LG Display | 17.0 | 1280×1024 |
| LTM170E6-L04 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L01 | Samsung | 17.0 | 1280×1024 |
| LTN170BT08-G01 | Samsung | 17.0 | 1440×900 |
| M170EG01 VF | AUO | 17.0 | 1280×1024 |
| M170EP01 V0 | AUO | 17.0 | 1280×1024 |
| MT170EN01 V.1 | Innolux | 17.0 | 1280×1024 |
| N170C3-L01 | Innolux | 17.0 | 1440×900 |
| B116XW03 V1 | AUO | 11.6 | 1366×768 |
| B133EW01 V9 | AUO | 13.3 | 1280×800 |
| B141EW04 V4 | AUO | 14.1 | 1280×800 |
| CLAA150PB03 | CPT | 15.0 | 1400×1050 |
| HSD150PX14-A00 | HannStar | 15.0 | 1024×768 |
| LP140WH2-TLM2 | LG Display | 14.0 | 1366×768 |
| LTN154U2-L04-0 | Samsung | 15.4 | 1920×1200 |
| LTN156AT05-H01 | Samsung | 15.6 | 1366×768 |
| LTN156KT01-003 | Samsung | 15.6 | 1600×900 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
