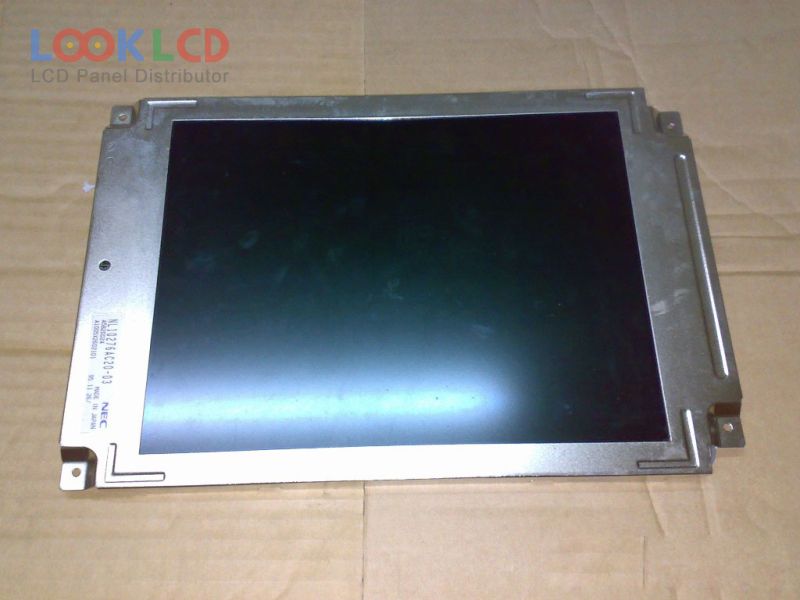

| Nambari ya Sehemu | NL10276AC20-03 |
| Chapa | NLT |
| Ukubwa | 10.4 |
| Maombi | IA |
| Azimio | 1024×768 |
| Muundo | LCM |
| Mwangaza | 85 |
| CR | 100:1 |
| Rangi | 4096 |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | NEC |
| mfano wa paneli | NL10276AC20-03 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 10.4 inch |
| azimio | 1024(RGB)×768 , XGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 211.968×158.976 mm |
| muhtasari | 282×190×13 mm |
| uso | |
| mwangaza | 85 cd/m² (Typ.) |
| uwiano wa utofautishaji | 100:1 (Typ.) |
| kuonyesha rangi | 4096 (4-bit), CIE193140% |
| wakati wa majibu | 40 (Min.)(Tr+Td) |
| angle ya kutazama | 45/45/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 1 pcsCCFLEmbedded (Inverter) |
| kiolesura cha ishara | TTL (1 ch, 4-bit), 65 pins |
| voltage ya pembejeo | 5.0/12.0V (Typ.)(VCC/VDD) |
| maombi | IA |
