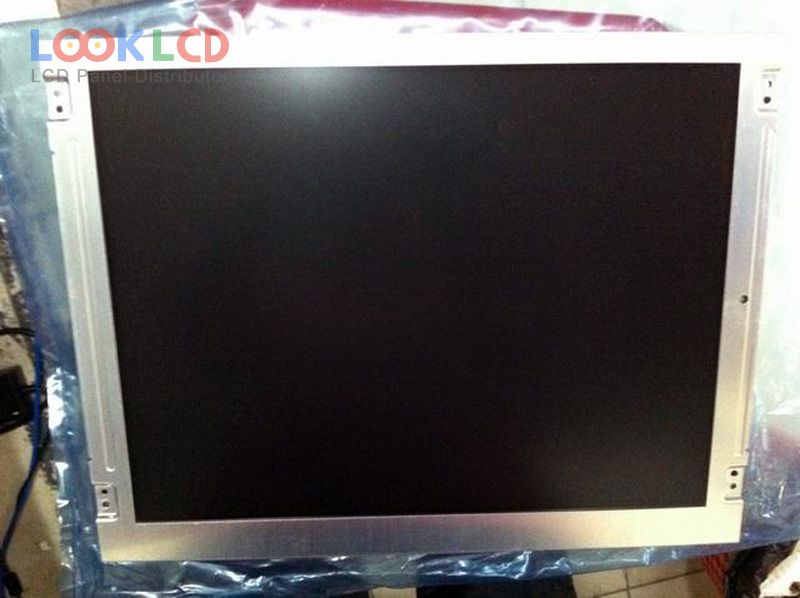

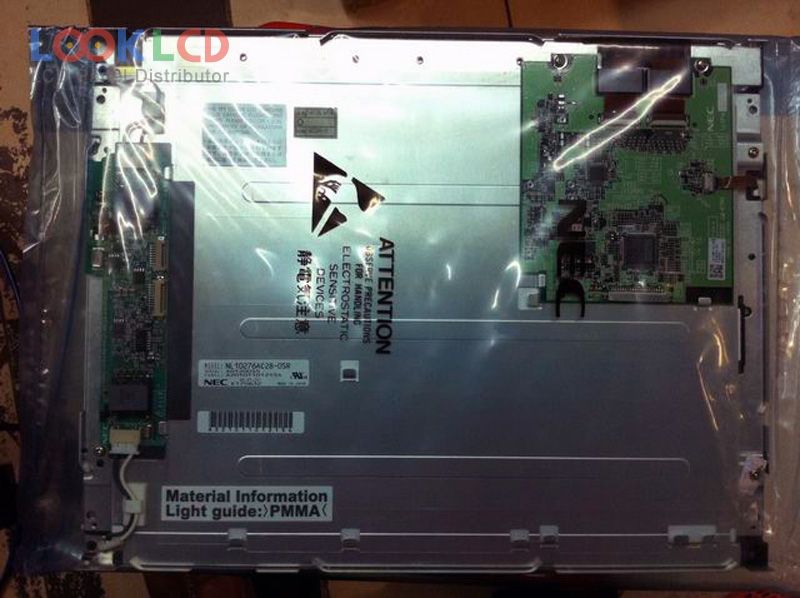

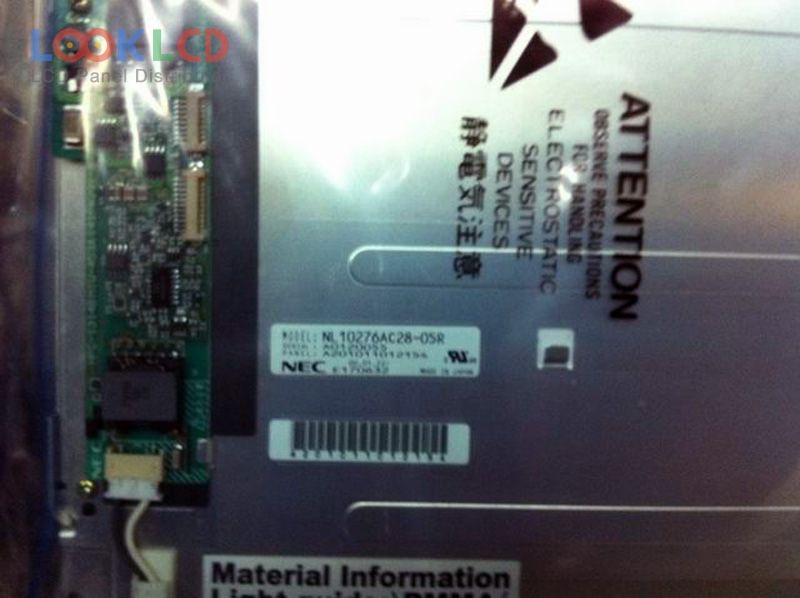

| Nambari ya Sehemu | NL10276AC28-05R |
| Chapa | NLT |
| Ukubwa | 14.1 |
| Maombi | DMPC |
| Azimio | 1024×768 |
| Muundo | LCM |
| Mwangaza | 220 |
| CR | 150:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | NEC |
| mfano wa paneli | NL10276AC28-05R |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 14.1 inch |
| azimio | 1024(RGB)×768 , XGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 285.696×214.272 mm |
| muhtasari | 330×255×20.5 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 220 cd/m² (Typ.) |
| uwiano wa utofautishaji | 150:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193140% |
| wakati wa majibu | 11/40 (Typ.)(Tr/Td) |
| angle ya kutazama | 50/50/20/35 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 2 pcsCCFLEmbedded (Inverter) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 20 pins |
| voltage ya pembejeo | 5.0V (Typ.) |
| maombi | DMPC |
| NL10276AC24-05 | NLT | 12.1 | 1024×768 |
| NL10276BC12-02 | NLT | 6.3 | 1024×768 |
| NL10276BC13-01C | NLT | 6.5 | 1024×768 |
| NL10276BC16-06 | NLT | 8.4 | 1024×768 |
| NL10276BC16-06D | NLT | 8.4 | 1024×768 |
| NL10276BC20-08 | NLT | 10.4 | 1024×768 |
| NL10276BC28-21A | NLT | 14.1 | 1024×768 |
| NL10276BC30-18C | NLT | 15.0 | 1024×768 |
| NL10276BC30-18L | NLT | 15.0 | 1024×768 |
| NL10276BC30-34D | NLT | 15.0 | 1024×768 |
| CLAA150XP01Q | CPT | 15.0 | 1024×768 |
| HT170EX1-101 | BOE | 17.0 | 1280×1024 |
| LM220WE1-TLM1 | LG Display | 22.0 | 1680×1050 |
| LQ170E1LG18 | SHARP | 17.0 | 1280×1024 |
| LTM170E6-L03 | Samsung | 17.0 | 1280×1024 |
| LTM215HT03 | Samsung | 21.5 | 1920×1080 |
| LTM230HT10 | Samsung | 23.0 | 1920×1080 |
| LTM300M1-P02 | Samsung | 30.0 | 2560×1600 |
| M156MWR1 R0 | IVO | 15.6 | 1366×768 |
| M240J1-L03 | Innolux | 24.0 | 1920×1200 |
