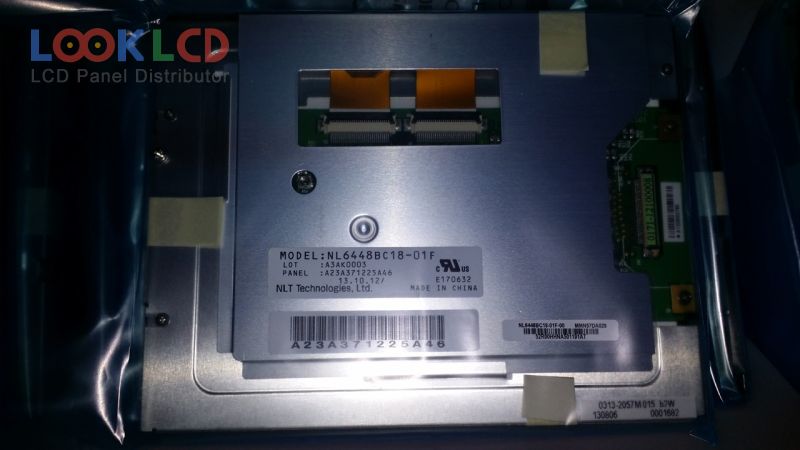

| Nambari ya Sehemu | NL6448BC18-01F |
| Chapa | NLT |
| Ukubwa | 5.7 |
| Maombi | IA |
| Azimio | 640×480 |
| Muundo | LCM |
| Mwangaza | 800 |
| CR | 850:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | NEC |
| mfano wa paneli | NL6448BC18-01F 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 5.7 inch |
| azimio | 640(RGB)×480 , VGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 116.16×87.12 mm |
| muhtasari | 135×104.6×10.9 mm |
| uso | Clear, Hard coating (3H) |
| mwangaza | 800 cd/m² (Typ.) |
| uwiano wa utofautishaji | 850:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193160% |
| wakati wa majibu | 3/15 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 9S2P×2CNWLEDWithout Driver |
| kiolesura cha ishara | CMOS (1 ch, 6-bit), 33 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
| NL6448BC18-03F | NLT | 5.7 | 640×480 |
| NL6448BC20-20 | NLT | 6.5 | 640×480 |
| NL6448BC20-35D | NLT | 6.5 | 640×480 |
| NL6448BC26-01 | NLT | 8.4 | 640×480 |
| NL6448BC26-11 | NLT | 8.4 | 640×480 |
| NL6448BC33-21 | NLT | 10.4 | 640×480 |
| NL6448BC33-59D | NLT | 10.4 | 640×480 |
| NL6448BC33-70D | NLT | 10.4 | 640×480 |
| NL6448BC33-71 | NLT | 10.4 | 640×480 |
| NL6448BC33-74 | NLT | 10.4 | 640×480 |
| AA050ME01 | Mitsubishi | 5.0 | 800×480 |
| AA050ME01--T1 | Mitsubishi | 5.0 | 800×480 |
| AA106TA01 | Mitsubishi | 10.6 | 1280×768 |
| KCG057QV1DB-G56 | Kyocera | 5.7 | 320×240 |
| LQ070Y1LG12 | SHARP | 7.0 | 800×480 |
| LQ9D011 | SHARP | 8.4 | 640×480 |
| NL10276BC20-18 | NLT | 10.4 | 1024×768 |
| P50AN3 | E Ink | 5.0 | 320×234 |
| TX18D200VM0EAA | KOE | 7.0 | 1920×1080 |
| UG-5664ASYGF01 | WiseChip | 5.5 | 256×64 |
