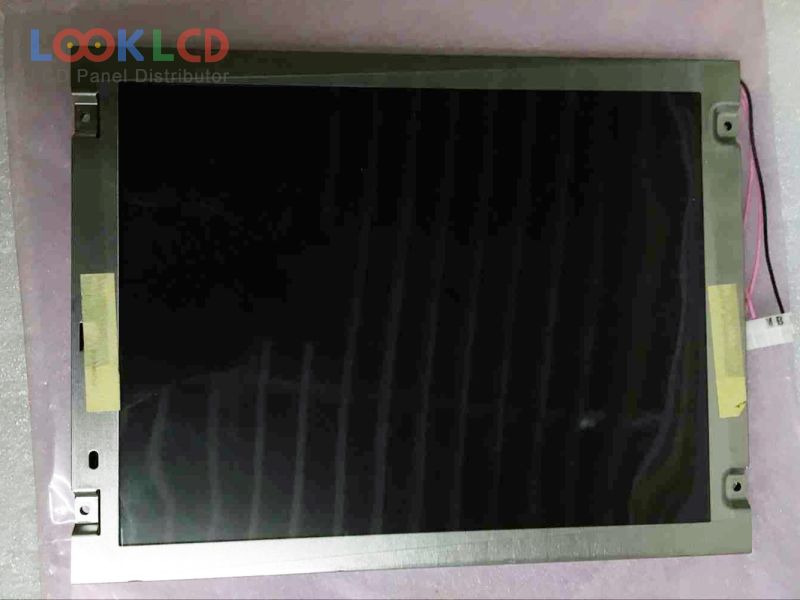

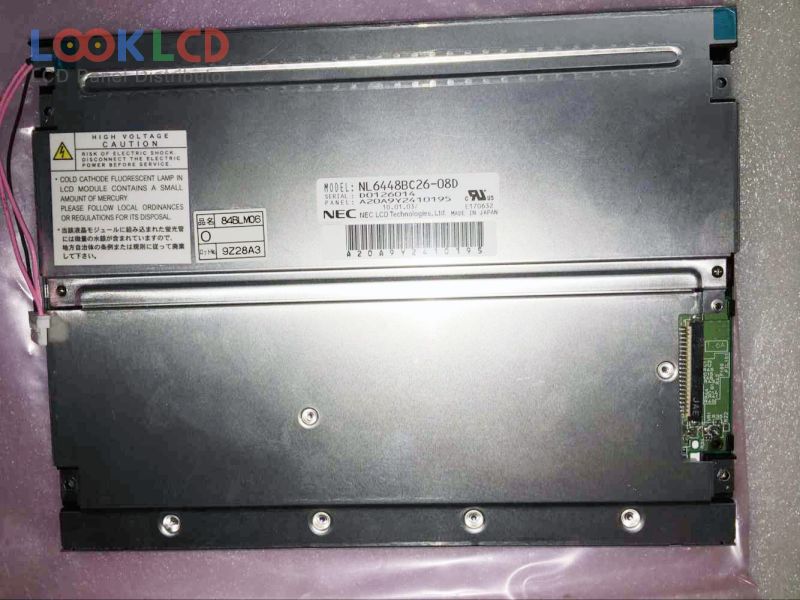

| Nambari ya Sehemu | NL6448BC26-08D |
| Chapa | NLT |
| Ukubwa | 8.4 |
| Maombi | IA |
| Azimio | 640×480 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 800:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | CCFL |
| Kiolesura | LVDS |
| chapa ya paneli | NEC |
| mfano wa paneli | NL6448BC26-08D |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.4 inch |
| azimio | 640(RGB)×480 , VGA |
| hali ya kuonyesha | UA-SFT, Normally Black, Transmissive |
| eneo la kazi | 170.88×128.16 mm |
| muhtasari | 200×152 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| wakati wa majibu | 10/10 (Typ.)(Tr/Td) |
| angle ya kutazama | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | LVDS (1 ch, 6/8-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
| NL6448BC18-03F | NLT | 5.7 | 640×480 |
| NL6448BC18-06F | NLT | 5.7 | 640×480 |
| NL6448BC20-30F | NLT | 6.5 | 640×480 |
| NL6448BC26-11 | NLT | 8.4 | 640×480 |
| NL6448BC26-15 | NLT | 8.4 | 640×480 |
| NL6448BC33-20 | NLT | 10.4 | 640×480 |
| NL6448BC33-49 | NLT | 10.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| NL6448BC33-59 | NLT | 10.4 | 640×480 |
| NL6448BC33-63D | NLT | 10.4 | 640×480 |
| CRD070TN03-50NM01 | Other | 7.0 | 800×480 |
| LJ640U34 | SHARP | 8.9 | 640×400 |
| LM240WU8-SLA2 | LG Display | 24.0 | 1920×1200 |
| LM240WUA-SSA1 | LG Display | 24.0 | 1920×1200 |
| LM32K101 | SHARP | 4.7 | 320×240 |
| LM32P101 | SHARP | 4.7 | 320×240 |
| LQ121S1DG61 | SHARP | 12.1 | 800×600 |
| PD064VT4 | E Ink | 6.4 | 640×480 |
| PM070WL1 | E Ink | 7.0 | 800×480 |
| T-51750GD065J-FW-ADN | Kyocera | 6.5 | 640×480 |
