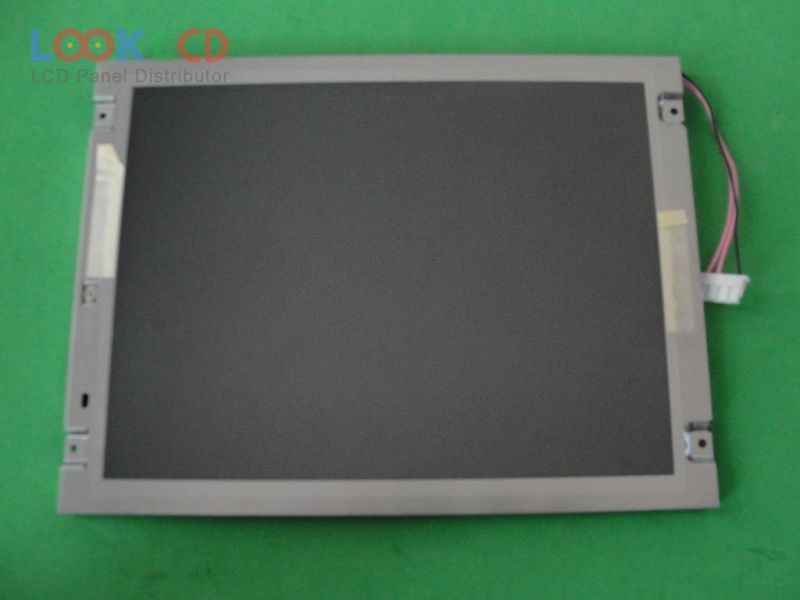

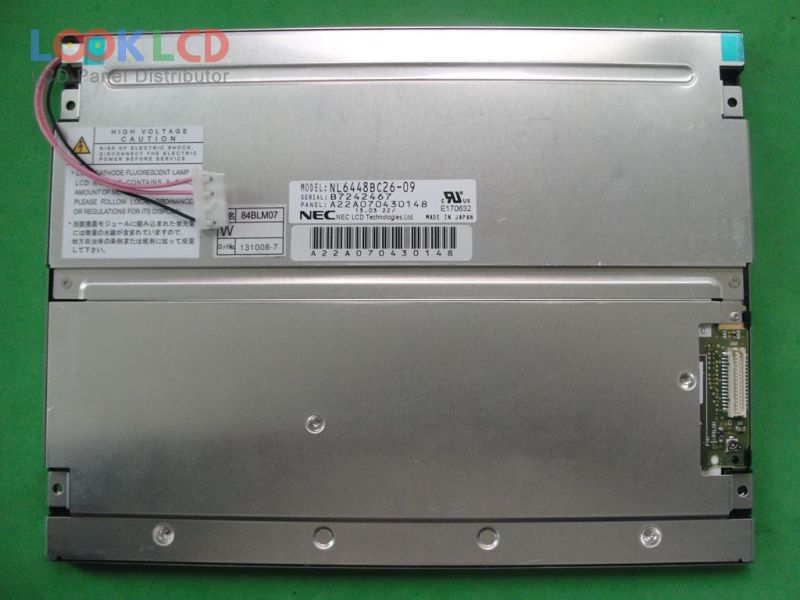

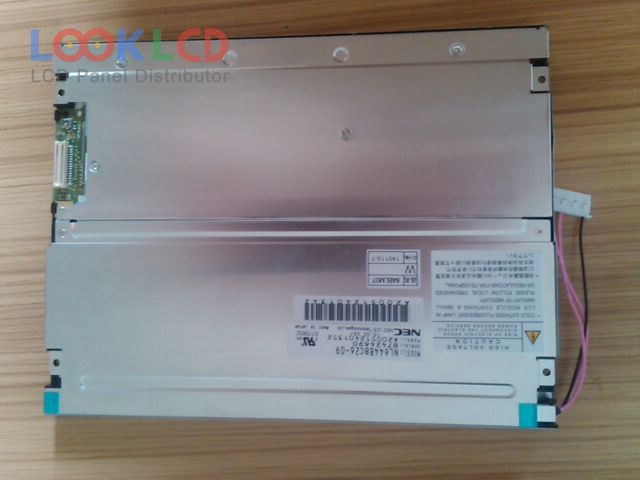

| Nambari ya Sehemu | NL6448BC26-09 |
| Chapa | NLT |
| Ukubwa | 8.4 |
| Maombi | IA |
| Azimio | 640×480 |
| Muundo | LCM |
| Mwangaza | 450 |
| CR | 600:1 |
| Rangi | 262K |
| Mwangaza nyuma | CCFL |
| Kiolesura | TTL |
| chapa ya paneli | NEC |
| mfano wa paneli | NL6448BC26-09 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.4 inch |
| azimio | 640(RGB)×480 , VGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 170.88×128.16 mm |
| muhtasari | 200×152 mm |
| uso | Clear, Hard coating (3H) |
| mwangaza | 450 cd/m² (Typ.) |
| uwiano wa utofautishaji | 600:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193140% |
| wakati wa majibu | 6/19 (Typ.)(Tr/Td) |
| angle ya kutazama | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 2 pcsCCFLWithout Driver |
| kiolesura cha ishara | CMOS (1 ch, 6-bit), 31 pins |
| voltage ya pembejeo | 3.3/5.0V (Typ.) |
| maombi | IA |
| NL6448AC20-06 | NLT | 6.5 | 640×480 |
| NL6448BC18-06F | NLT | 5.7 | 640×480 |
| NL6448BC26-01 | NLT | 8.4 | 640×480 |
| NL6448BC26-08D | NLT | 8.4 | 640×480 |
| NL6448BC26-15 | NLT | 8.4 | 640×480 |
| NL6448BC26-25 | NLT | 8.4 | 640×480 |
| NL6448BC33-49 | NLT | 10.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| NL6448BC33-59 | NLT | 10.4 | 640×480 |
| NL6448BC33-63D | NLT | 10.4 | 640×480 |
| AA104SH02--T1 | Mitsubishi | 10.4 | 800×600 |
| COM70T7M17ZLC | ORTUSTECH | 7.0 | 800×480 |
| G170EG01 V0 | AUO | 17.0 | 1280×1024 |
| LQ070Y1LG12 | SHARP | 7.0 | 800×480 |
| LQ104S1LG61 | SHARP | 10.4 | 800×600 |
| LTM10C210 | TOSHIBA | 10.4 | 640×480 |
| LTM12C275A | TOSHIBA | 12.1 | 800×600 |
| M190EG01 V0 | AUO | 19.0 | 1280×1024 |
| NL6448AC30-12 | NLT | 9.4 | 640×480 |
| PD121XL3 | E Ink | 12.1 | 1024×768 |
