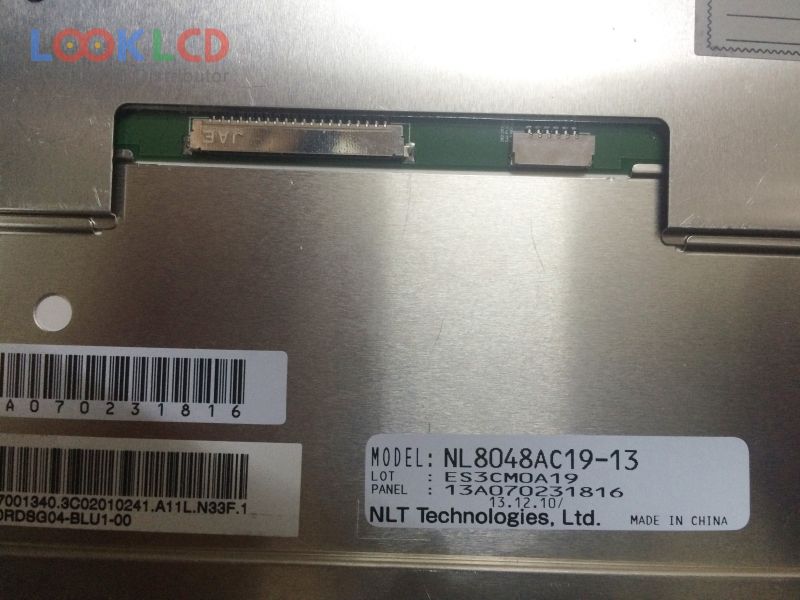

| Nambari ya Sehemu | NL8048AC19-13 |
| Chapa | NLT |
| Ukubwa | 7.0 |
| Maombi | IA |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 500 |
| CR | 800:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | NLT |
| mfano wa paneli | NL8048AC19-13 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 152.4×91.44 mm |
| muhtasari | 170×111×9 mm |
| uso | Clear, Hard coating (3H) |
| mwangaza | 500 cd/m² (Typ.) |
| uwiano wa utofautishaji | 800:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193160% |
| wakati wa majibu | 8 (Typ.)(Tr+Td) |
| angle ya kutazama | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDEmbedded (LED Driver) |
| kiolesura cha ishara | LVDS (1 ch, 6-bit), 20 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
