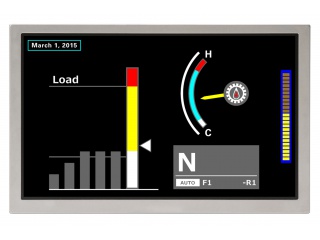

| Nambari ya Sehemu | NL8048BC21-03F |
| Chapa | NLT |
| Ukubwa | 8.0 |
| Maombi | Industrial Outdoor H |
| Azimio | 800×480 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa | NLT |
| ukubwa wa diagonal | 8.0 inch |
| muundo wa pixel | 800(RGB)×480 [WVGA] 116PPI |
| eneo la kazi | 174(H)×104.4(V) mm |
| eneo la bezel | - |
| mwangaza | 1000 cd/m² (Typ.) |
| tazama mwelekeo | Symmetry |
| angle ya kutazama | 88/88/88/88 (Typ.)(CR≥10) |
| rangi ya msaada | 262K/16.7M 72% NTSC |
| uzito | 225g |
| kiwango cha fremu | 60Hz |
| aina ya kiolesura | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
| mfano | NL8048BC21-03F |
| aina | a-Si TFT-LCD , LCM |
| usanidi | RGB Vertical Stripe |
| muhtasari dim. | 192(H)×122(V) mm |
| matibabu | Antiglare |
| uwiano wa utofautishaji | 1000:1 (Typ.) (TM) |
| wakati wa majibu | 20 (Typ.)(Tr+Td) |
| hali ya uendeshaji | SFT, Normally Black, Transmissive |
| chanzo cha mwanga | WLED |
| iliyoundwa kwa ajili ya | Industrial Outdoor High Brightness |
| jopo la kugusa | Without |
