Innolux AT080TN03 V.2 hifadhidata, vipimo, hisa, programu www.looklcd-mk.com
LookLCD LookLCD

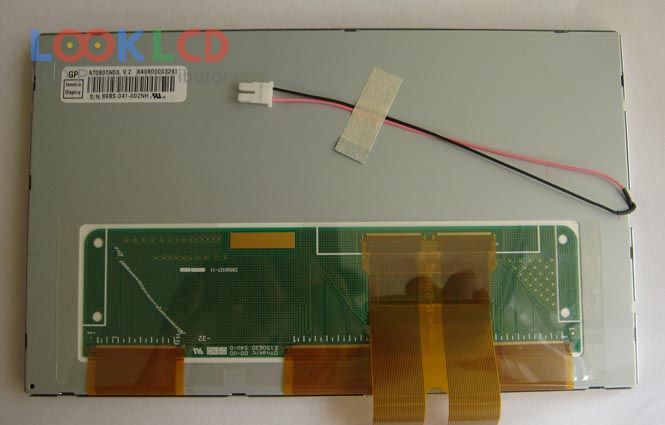

AT080TN03 V.2

AT080TN03 V.2
AT080TN03 V.2 thumb
Chapa
Innolux
Ukubwa
8.0
Maombi
CNS
Azimio
800×480
Muundo
LCM
Mwangaza
500
CR
300:1
Rangi
262K
Mwangaza nyuma
WLED
Kiolesura
TTL
In Stock
3155
Vipimo

Nambari ya Sehemu AT080TN03 V.2
ChapaInnolux
Ukubwa8.0
MaombiCNS
Azimio800×480
MuundoLCM
Mwangaza500
CR300:1
Rangi262K
Mwangaza nyumaWLED
KiolesuraTTL
chapa ya paneliINNOLUX
mfano wa paneliAT080TN03 V.2
aina ya paneli a-Si TFT-LCD , LCM
saizi ya paneli8.0 inch
azimio800(RGB)×480 , WVGA
hali ya kuonyeshaTN, Normally White, Transmissive
eneo la kazi176.64×99.36 mm
muhtasari192.8×116.9 mm
usoAntiglare
mwangaza500 cd/m² (Typ.)
uwiano wa utofautishaji300:1 (Typ.)
kuonyesha rangi262K (6-bit)
wakati wa majibu15/20 (Typ.)(Tr/Td)
angle ya kutazama65/65/45/65 (Typ.)(CR≥10)(L/R/U/D)
aina ya taa3S12PWLEDWithout Driver
kiolesura cha isharaParallel RGB (1 ch, 6-bit), 60 pins
voltage ya pembejeo3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
rohs:
maombiCNS
Mfano wa Familia
AT080TN01 Innolux 8.0 800×480
AT080TN03 V.1 Innolux 8.0 800×480
AT080TN03 V.2 Innolux 8.0 800×480
AT080TN03 V.7 Innolux 8.0 800×480
AT080TN42 Innolux 8.0 800×600
AT080TN42 V.1 Innolux 8.0 800×600
AT080TN43 Innolux 8.0 800×600
AT080TN52 Innolux 8.0 800×600
AT080TN52 V.1 Innolux 8.0 800×600
AT080TN64 Innolux 8.0 800×480
