Other OEL9M0064-Y-E hifadhidata, vipimo, hisa, programu www.looklcd-mk.com
LookLCD LookLCD

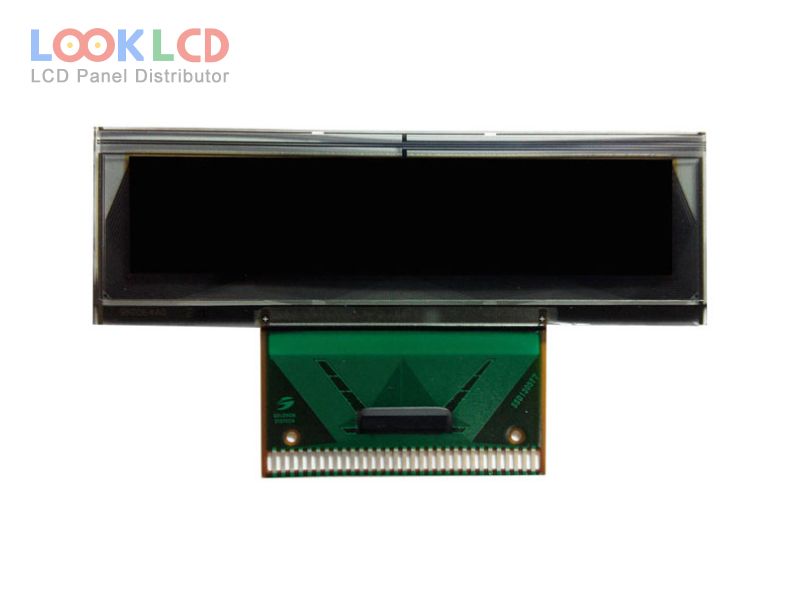

OEL9M0064-Y-E

OEL9M0064-Y-E
OEL9M0064-Y-E thumb
Chapa
Other
Ukubwa
2.0
Maombi
IA
Azimio
128×32
Muundo
OLED
Mwangaza
80
CR
10000:1
Rangi
Mono(Yellow)
Mwangaza nyuma
self
Kiolesura
CPU/SPI/I²C
In Stock
5225
Vipimo

Nambari ya Sehemu OEL9M0064-Y-E
ChapaOther
Ukubwa2.0
MaombiIA
Azimio128×32
MuundoOLED
Mwangaza80
CR10000:1
RangiMono(Yellow)
Mwangaza nyumaself
KiolesuraCPU/SPI/I²C
chapa ya paneliTRULY
mfano wa paneliOEL9M0064-Y-E
aina ya paneli PM-OLED , OLED
saizi ya paneli2.0 inch
azimio128×32
eneo la kazi50.535×10.695 mm
muhtasari59×18.86×1.6 mm
uso
mwangaza80 cd/m² (Typ.)
uwiano wa utofautishaji10000 : 1 (Min.)
kuonyesha rangiMono(Yellow) (1-bit)
angle ya kutazama80/80/80/80 (Min.)(L/R/U/D)
masafa100Hz
dereva icTAB Built-in SSD1305T7R1
kiolesura cha ishara8-bit 6800/8080 parallel, SPI, I²C, 31 pins
voltage ya pembejeo3.0/12.0V (Typ.)(VDD/VCC)
maombiIA
Mfano wa Familia
OEL9M0039-G-E Other 1.5 128×128
OEL9M0039-W-E Other 1.5 128×128
OEL9M0039-Y-E Other 1.5 128×128
OEL9M0065-W-E Other 2.7 256×64
OEL9M0065-Y-E Other 2.7 256×64
OEL9M0068-W-E Other 0.91 128×32
OEL9M0068-Y-E Other 0.91 128×32
OEL9M0078-Y-E Other 1.45 132×16
OEL9M0082-R-E Other 1.1 128×128
OEL9M0083-Y-E Other 0.96 128×64
