Other OEL9M0083-G-E hifadhidata, vipimo, hisa, programu www.looklcd-mk.com
LookLCD LookLCD

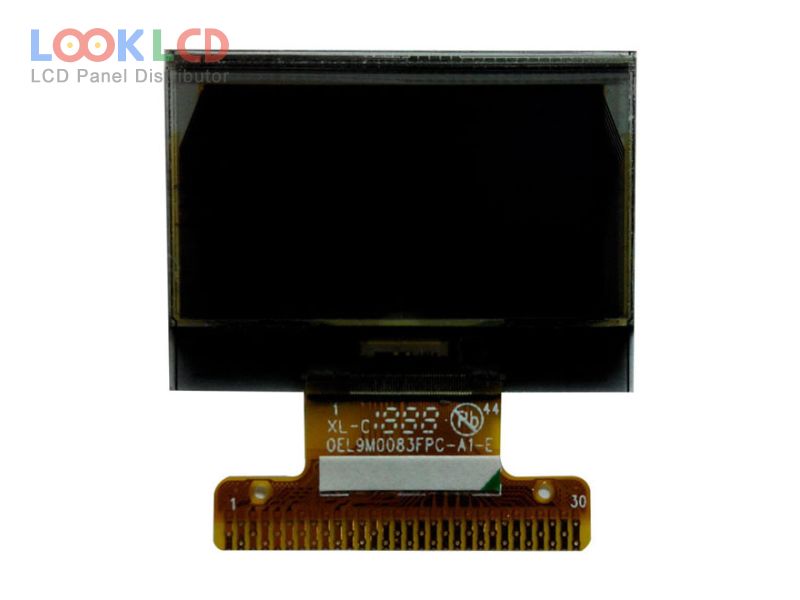

OEL9M0083-G-E

OEL9M0083-G-E
OEL9M0083-G-E thumb
Chapa
Other
Ukubwa
0.96
Maombi
Azimio
128×64
Muundo
OLED
Mwangaza
CR
10000:1
Rangi
Mono(Green)
Mwangaza nyuma
self
Kiolesura
CPU/SPI/I²C
In Stock
13185
Vipimo

Nambari ya Sehemu OEL9M0083-G-E
ChapaOther
Ukubwa0.96
Maombi
Azimio128×64
MuundoOLED
Mwangaza
CR10000:1
RangiMono(Green)
Mwangaza nyumaself
KiolesuraCPU/SPI/I²C
chapa ya paneliTRULY
mfano wa paneliOEL9M0083-G-E
aina ya paneli PM-OLED , OLED
saizi ya paneli0.96 inch
azimio128×64
eneo la kazi21.74×11.175 mm
muhtasari26.7×19.26×1.65 mm
uso
mwangaza
uwiano wa utofautishaji10000 : 1 (Min.)
kuonyesha rangiMono(Green) (1-bit)
angle ya kutazama80/80/80/80 (Min.)(L/R/U/D)
masafa100Hz
dereva icCOG Built-in SH1106G
kiolesura cha ishara8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins
