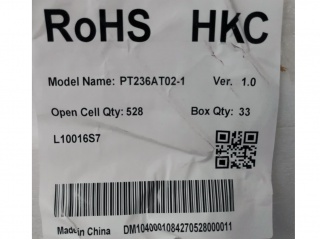

| Nambari ya Sehemu | PT236AT02-1 |
| Chapa | HKC |
| Ukubwa | 23.6 |
| Maombi | TV Sets |
| Azimio | 1366×768 |
| Muundo | a-Si TFT-LCD , CELL |
| Mwangaza | |
| CR | 3000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | No |
| Kiolesura | LVDS |
| chapa ya paneli | HKC |
| saizi ya paneli | 23.6" |
| azimio | 1366(RGB)×768, WXGA, 66PPI |
| eneo la maonyesho | 521.471(W)×293.184(H) mm |
| saizi ya muhtasari | 535.471(W)×306.404(H) ×1.37(D) mm |
| mwangaza | 0 cd/m² |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10) |
| mwonekano bora zaidi | Symmetry |
| kioo kina | 0.50+0.50 mm |
| kuonyesha rangi | 16.7M 71% NTSC |
| masafa | 60Hz |
| dereva ic | COF Built-in 2 source + 2 gate chips |
| uzito wa paneli | 500g (Typ.) |
| kiolesura cha ishara | LVDS (1 ch, 8-bit) , 30 pins Connector |
| voltage ya pembejeo | 12.0V (Typ.) |
| mazingira | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| mfano wa paneli | PT236AT02-1 |
| aina ya paneli | a-Si TFT-LCD , CELL |
| muundo wa pixel | RGB Vertical Stripe |
| ufunguzi wa bezel | - |
| uso | Antiglare (Haze 3%), Hard coating (3H) |
| uwiano wa utofautishaji | 3000:1 (Typ.) (TM) |
| hali ya kuonyesha | FSA, Normally Black, Transmissive |
| wakati wa majibu | 9.5 (Typ.)(G to G) |
| uhamishaji | 5.8% (Typ.)(with Polarizer) |
| aina ya taa | No B/L |
| skrini ya kugusa | Without |
| maombi | TV Sets |
