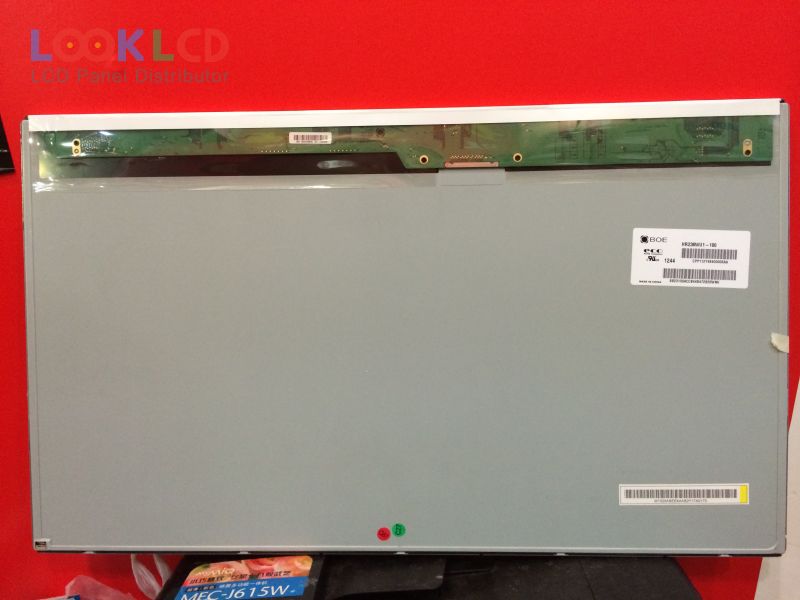

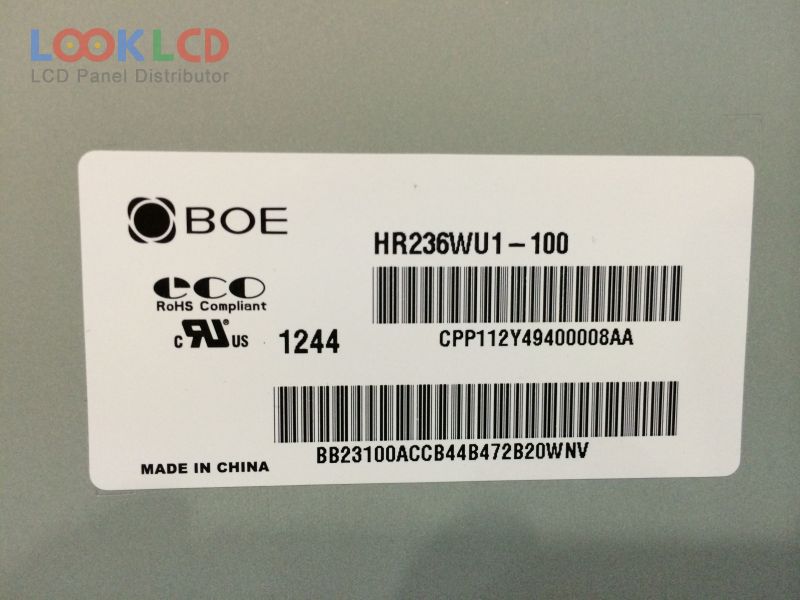

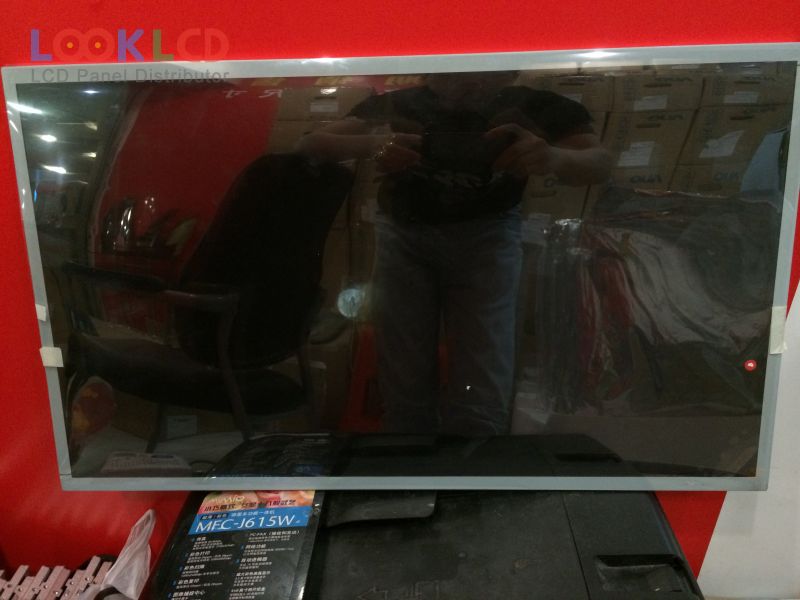

| Nambari ya Sehemu | HR236WU1-100 |
| Chapa | BOE |
| Ukubwa | 23.6 |
| Maombi | DMPC |
| Azimio | 1920×1080 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | BOE |
| mfano wa paneli | HR236WU1-100 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 23.6 inch |
| azimio | 1920(RGB)×1080 , FHD |
| hali ya kuonyesha | ADS, Normally Black, Transmissive |
| eneo la kazi | 521.28×293.22 mm |
| muhtasari | 544.8×320.5×9.6 mm |
| uso | Antiglare (Haze 25%), Hard coating (3H) |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000:1 (Typ.) |
| kuonyesha rangi | 16.7M (6-bit + Hi-FRC) |
| wakati wa majibu | 14 (Typ.)(G to G) |
| angle ya kutazama | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 4 stringsWLEDWithout Driver |
| kiolesura cha ishara | LVDS (2 ch, 8-bit), 30 pins |
| voltage ya pembejeo | 5.0V (Typ.) |
| maombi | DMPC |
