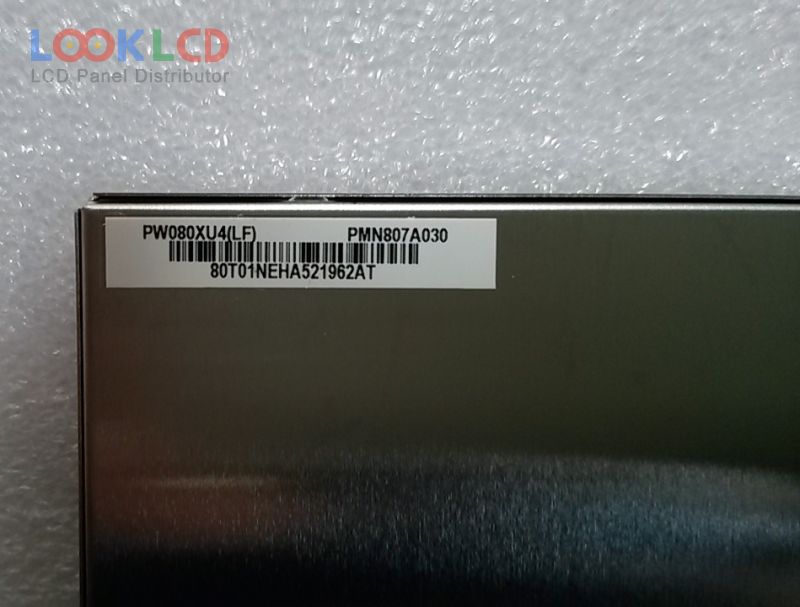

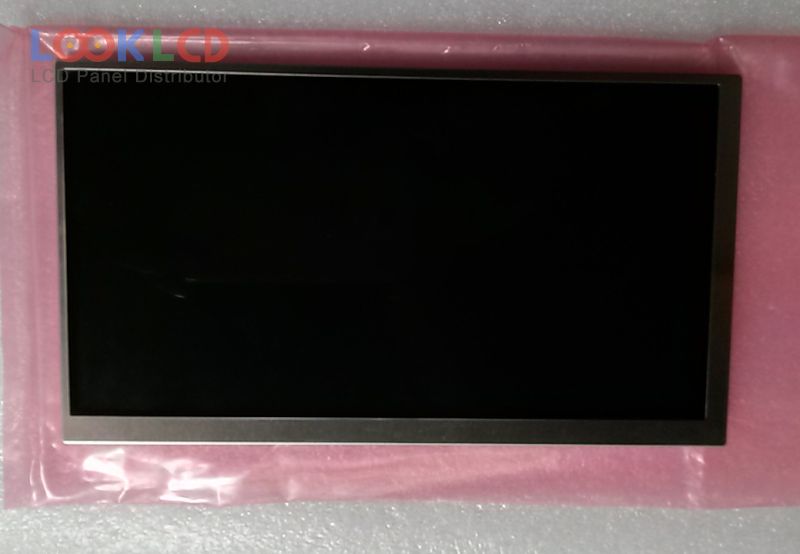

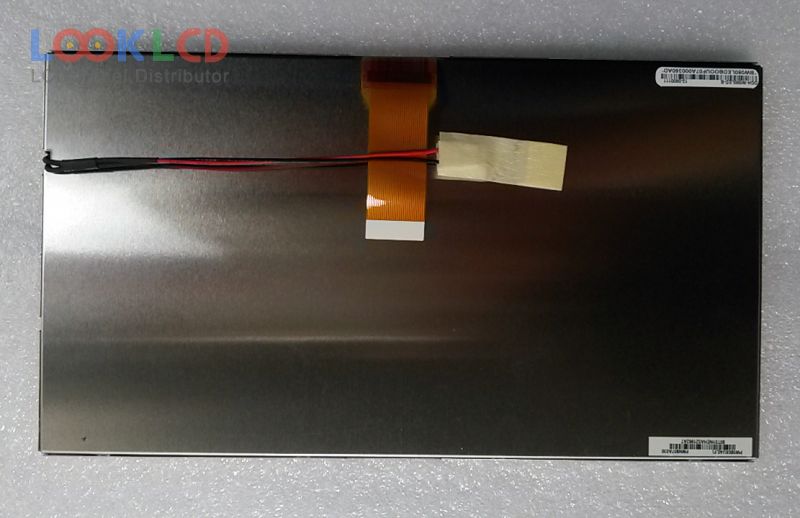

| Nambari ya Sehemu | PW080XU4 |
| Chapa | E Ink |
| Ukubwa | 8.0 |
| Maombi | CNS |
| Azimio | 480×220 |
| Muundo | LCM |
| Mwangaza | 300 |
| CR | 400:1 |
| Rangi | Full color |
| Mwangaza nyuma | WLED |
| Kiolesura | Analog |
| chapa ya paneli | PVI |
| mfano wa paneli | PW080XU4 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 8.0 inch |
| azimio | 480(RGB)×220 |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 180.72×94.27 mm |
| muhtasari | 193×108.3×7 mm |
| uso | Antiglare |
| mwangaza | 300 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) |
| kuonyesha rangi | Full color |
| wakati wa majibu | 15/25 (Typ.)(Tr/Td) |
| angle ya kutazama | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S9PWLEDWithout Driver |
| kiolesura cha ishara | TFT Specific Analog RGB, 30 pins |
| voltage ya pembejeo | 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VCCG/AVDD/VGH/VEE) |
| maombi | CNS |
| AT080TN64 | Innolux | 8.0 | 800×480 |
| C080VW02 V0 | AUO | 8.0 | 800×480 |
| CLAA080LA0ACW | CPT | 8.0 | 800×480 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| LB080WV3-B1 | LG Display | 8.0 | 800×480 |
| LM64C21P | SHARP | 8.0 | 640×480 |
| LQ080Y5CGQ1 | SHARP | 8.0 | 800×480 |
| LTA080B441A | TOSHIBA | 8.0 | 480×234 |
| PW080XU1 | E Ink | 8.0 | 480×220 |
| PW080XU4 | E Ink | 8.0 | 480×220 |
| C065GW01 V0 | AUO | 6.5 | 400×234 |
| C065VL01 V0 | AUO | 6.5 | 800×480 |
| C070FW02 V0 | AUO | 7.0 | 480×234 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| G150X1-L01 | Innolux | 15.0 | 1024×768 |
| LQ049B5DG04 | SHARP | 4.9 | 320×96 |
| M101GWT9 R3 | IVO | 10.1 | 1024×600 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| ZJ080NA-08A | Innolux | 8.0 | 1024×600 |
