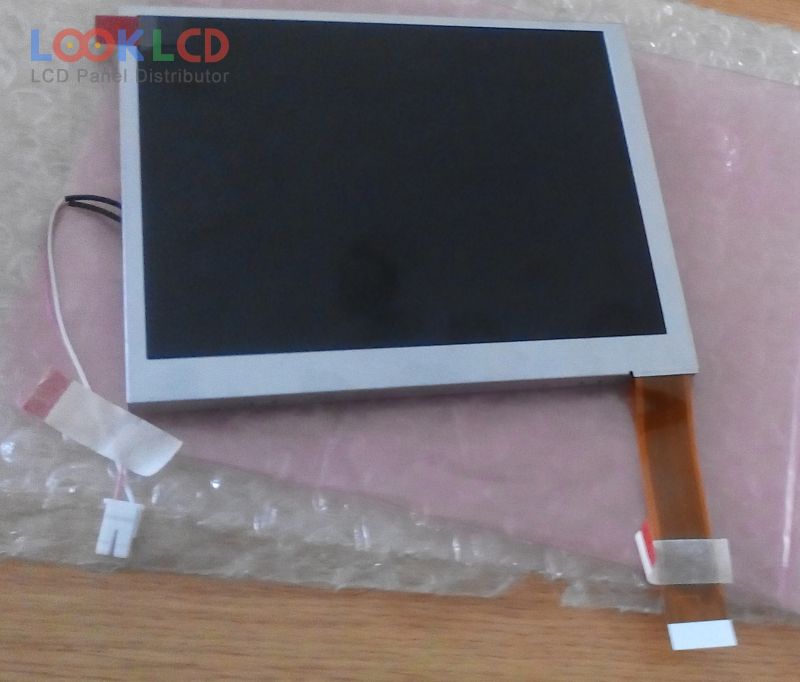

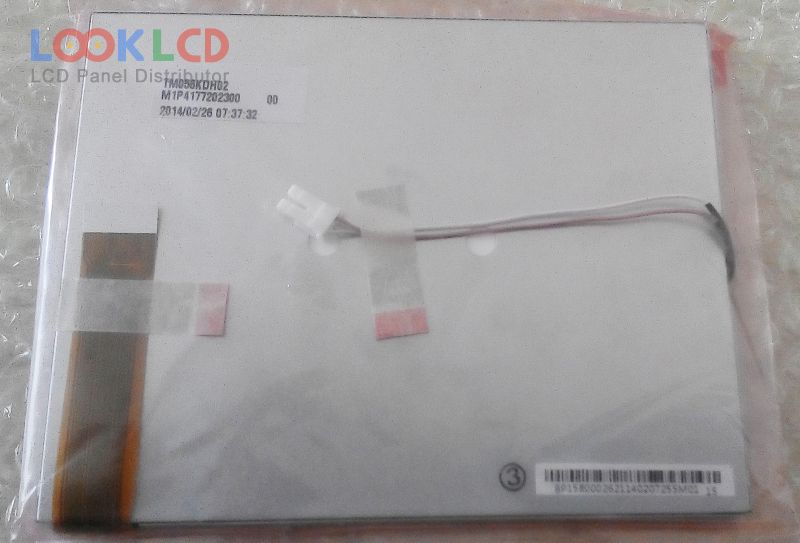

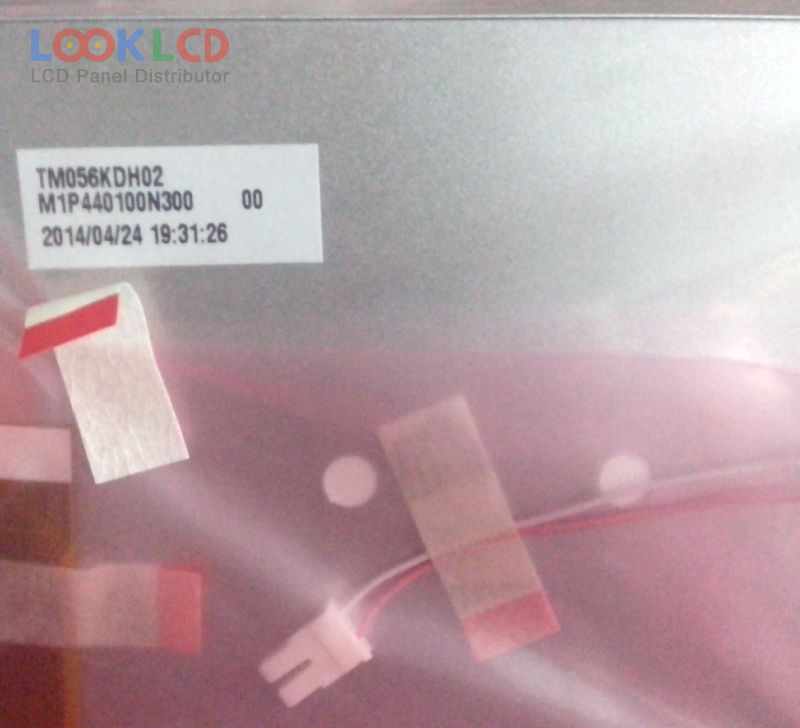

| Nambari ya Sehemu | TM056KDH02 |
| Chapa | Tianma |
| Ukubwa | 5.6 |
| Maombi | VDP |
| Azimio | 320×234 |
| Muundo | LCM |
| Mwangaza | 330 |
| CR | 300:1 |
| Rangi | Full color |
| Mwangaza nyuma | WLED |
| Kiolesura | Analog |
| chapa ya paneli | TIANMA |
| mfano wa paneli | TM056KDH02 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 5.6 inch |
| azimio | 320(RGB)×234 |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 113.28×84.708 mm |
| muhtasari | 126.5×100 mm |
| uso | Antiglare |
| mwangaza | 330 cd/m² (Typ.) |
| uwiano wa utofautishaji | 300:1 (Typ.) |
| kuonyesha rangi | Full color , CIE193150% |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 2S7PWLEDWithout Driver |
| kiolesura cha ishara | TFT Specific Analog RGB, 26 pins |
| voltage ya pembejeo | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| maombi | VDP |
| AT056TN04 V.6 | Innolux | 5.6 | 320×234 |
| FX050605DNCWAG03 | Data Image | 5.6 | |
| HV056WX1-100 | HYDIS | 5.6 | 1280×800 |
| LQ056A3AG01R | SHARP | 5.6 | 320×234 |
| LQ6AN101 | SHARP | 5.6 | 320×234 |
| LTD056ET0T | TOSHIBA | 5.6 | 1024×600 |
| LTD056ET2F | TOSHIBA | 5.6 | 1024×600 |
| TM056KDH01 | Tianma | 5.6 | 320×234 |
| TM056KDH02 | Tianma | 5.6 | 320×234 |
| A040CN01 V2 | AUO | 4.0 | 480×234 |
| A070FW03 V4 | AUO | 7.0 | 480×234 |
| DLC0500AIG-2 | Other | 5.0 | 640×480 |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| LB065WQ3-TD02 | LG Display | 6.5 | 400×240 |
| PW070DS1T1 | E Ink | 7.0 | 480×234 |
| PW070DS1T6 | E Ink | 7.0 | 480×234 |
| TM056KDH01 | Tianma | 5.6 | 320×234 |
| TM056KDH02 | Tianma | 5.6 | 320×234 |
