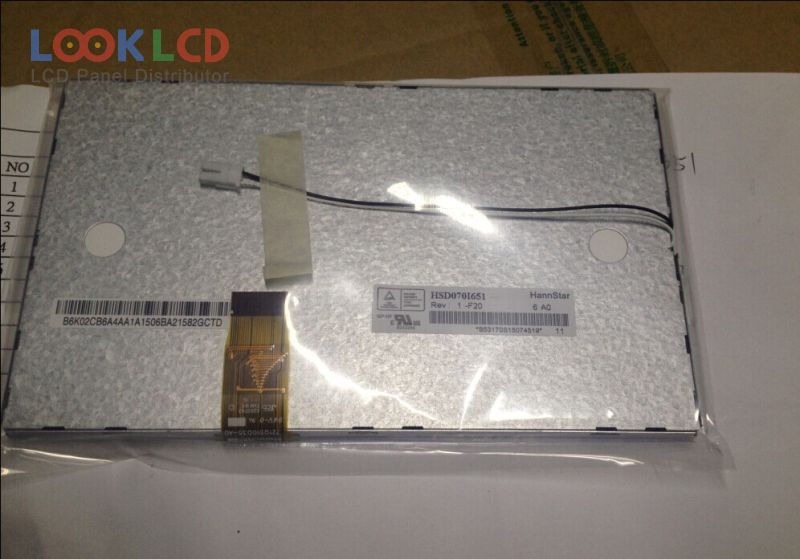

| Nambari ya Sehemu | HSD070I651-F20 |
| Chapa | HannStar |
| Ukubwa | 7.0 |
| Maombi | VDP |
| Azimio | 480×234 |
| Muundo | LCM |
| Mwangaza | 200 |
| CR | 500:1 |
| Rangi | Full color |
| Mwangaza nyuma | WLED |
| Kiolesura | Analog |
| chapa ya paneli | HannStar |
| mfano wa paneli | HSD070I651-F20 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 480(RGB)×234 |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 154.08×86.58 mm |
| muhtasari | 164.9×100×6 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 200 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | Full color |
| wakati wa majibu | 5/20 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/70/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| aina ya taa | 3S5PWLEDWithout Driver |
| kiolesura cha ishara | TFT Specific Analog RGB, 26 pins |
| voltage ya pembejeo | 3.3/5.0/15/-10V (Typ.)(DVDD/VGH/VGL) |
| maombi | VDP |
