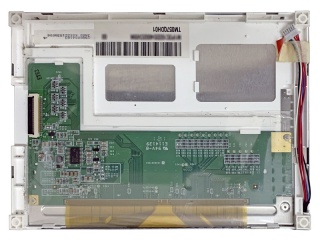

| Nambari ya Sehemu | TM057KDH01-10 |
| Chapa | TIANMA |
| Ukubwa | 5.7 |
| Maombi | Industrial |
| Azimio | 320×240 |
| Muundo | LCM, a-Si TFT-LCD |
| Mwangaza | |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | 5S3P |
| Kiolesura | Parallel |
| mtengenezaji | TIANMA |
| jina la mfano | TM057KDH01-10 |
| ukubwa wa skrini | 5.7 inch |
| aina ya skrini | LCM, a-Si TFT-LCD |
| nambari ya pixel | 320(RGB)×240 (QVGA) 70PPI |
| mpangilio | RGB Vertical Stripe |
| eneo amilifu(mm) | 115.2 × 86.4 (H×V) |
| muhtasari(mm) | 144 × 104.6 × 12.8 (H×V×D) |
| eneo la bezel(mm) | 118.2 × 89.4 (H×V) |
| matibabu | Antiglare, Hard coating (3H) |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500 : 1 (Typ.) (TM) |
| angle ya kutazama | 70/70/60/70 (Typ.)(CR≥10) |
| majibu | 20 (Typ.)(Tr+Td) ms |
| mtazamo mzuri | 12 o'clock |
| hali ya kazi | TN, Normally White, Transmissive |
| kina cha rangi | 262K 52% NTSC |
| backlight | 5S3P WLED , 50K hours , No Driver |
| wingi | 157g (Typ.) |
| kutumika kwa | Industrial |
| kiwango cha upya | 60Hz |
| skrini ya kugusa | Without |
| aina ya ishara | Parallel RGB (1 ch, 6-bit) , Connector 33 pins |
| usambazaji wa voltage | 3.3V (Typ.) |
| max. ukadiriaji | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| KCS057QV1AJ-G32 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G020W | Kyocera | 5.7 | 320×240 |
| KG057QV1CF-G050 | Kyocera | 5.7 | 320×240 |
| LT057AA34B00 | TOSHIBA | 5.7 | 320×240 |
| TM057KDH01 | Tianma | 5.7 | 320×240 |
| TM057KDH02 | Tianma | 5.7 | 320×240 |
| TM057KDH03 | Tianma | 5.7 | 320×240 |
| TM057KDH05 | Tianma | 5.7 | 320×240 |
| TM057KDHG03 | Tianma | 5.7 | 320×240 |
| TM057KDHG10 | Tianma | 5.7 | 320×240 |
