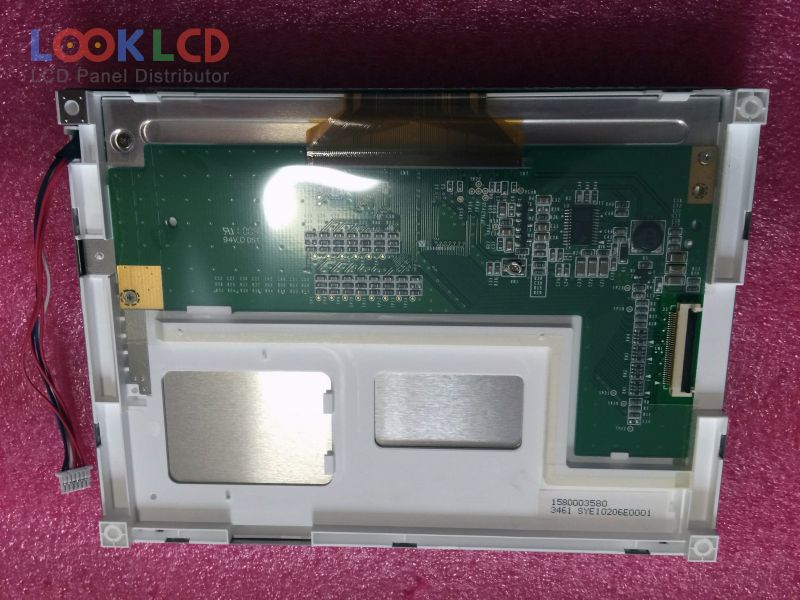

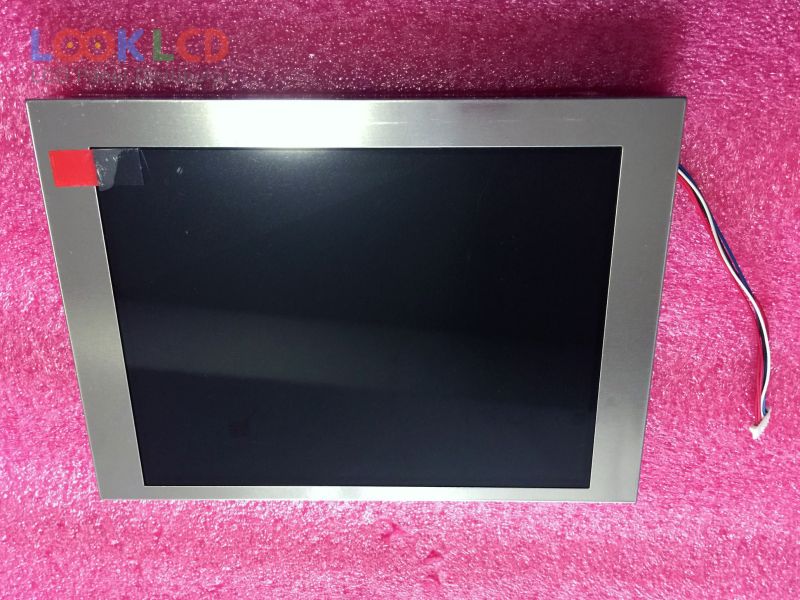

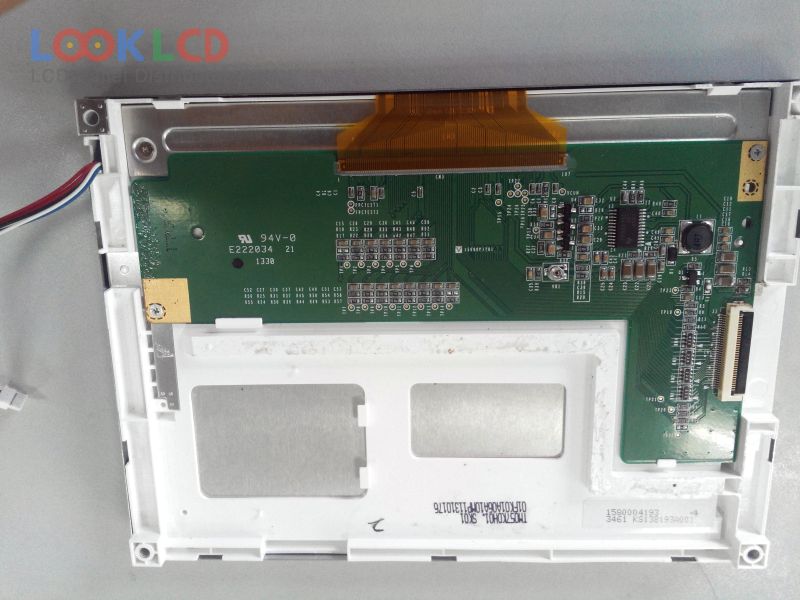

| Nambari ya Sehemu | TM057KDH01 |
| Chapa | Tianma |
| Ukubwa | 5.7 |
| Maombi | IA |
| Azimio | 320×240 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 500:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | TIANMA |
| mfano wa paneli | TM057KDH01 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 5.7 inch |
| azimio | 320(RGB)×240 , QVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 115.2×86.4 mm |
| muhtasari | 144×104.6×12.8 mm |
| uso | Antiglare, Hard coating (3H) |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 500:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193150% |
| wakati wa majibu | 20/30 (Typ./Max.)(Tr+Td) |
| angle ya kutazama | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 5S3PWLEDWithout Driver |
| kiolesura cha ishara | Parallel RGB (1 ch, 6-bit), 33 pins |
| voltage ya pembejeo | 3.3V (Typ.) |
| maombi | IA |
| TM057KDH01 | Tianma | 5.7 | 320×240 |
| TM057KDH02 | Tianma | 5.7 | 320×240 |
| TM057KDH03 | Tianma | 5.7 | 320×240 |
| TM057KDH05 | Tianma | 5.7 | 320×240 |
| TM057KDHG03 | Tianma | 5.7 | 320×240 |
| TM057KDHG10 | Tianma | 5.7 | 320×240 |
| TM057QDH01 | Tianma | 5.7 | 640×480 |
| TM057QDHG02 | Tianma | 5.7 | 640×480 |
| TM057QDHG04 | Tianma | 5.7 | 640×480 |
| TM057QVHG01 | Tianma | 5.7 | 640×480 |
| AA121TD01-DE3 | Mitsubishi | 12.1 | 1280×800 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| DLC1040ABG-2 | Other | 10.4 | 800×600 |
| EL320.256-FD8 V2 | PLANAR | 4.8 | 320×256 |
| HSD190MEN6-A01 | HannStar | 19.0 | 1280×1024 |
| LB064V02-A1 | LG Display | 6.4 | 640×480 |
| LCBHBT161M | NAN YA | 5.7 | 320×240 |
| LQ84S02 01A | SHARP | 8.4 | 800×600 |
| NL6448BC33-63D | NLT | 10.4 | 640×480 |
| PD064VX1 | E Ink | 6.4 | 640×480 |
