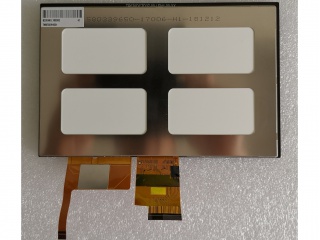

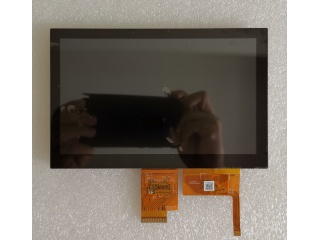

| Nambari ya Sehemu | TM070DVHG01-41 |
| Chapa | TIANMA |
| Ukubwa | 7.0 |
| Maombi | Industrial |
| Azimio | 1024×600 |
| Muundo | a-Si TFT-LCD , LCM |
| Mwangaza | |
| CR | 500:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | 3S6P |
| Kiolesura | |
| chapa ya paneli | TIANMA |
| saizi ya paneli | 7.0" |
| azimio | 1024(RGB)×600, WSVGA, 169PPI |
| eneo la maonyesho | 153.6(W)×90(H) mm |
| saizi ya muhtasari | 171.5(W)×110.3(H) ×5.3(D) mm |
| mwangaza | 270 cd/m² (Typ.) |
| angle ya kutazama | 75/75/70/75 (Typ.)(CR≥10) |
| mwonekano bora zaidi | 12 o'clock |
| kuonyesha rangi | 16.7M 50% NTSC |
| masafa | 60Hz |
| uzito | - |
| mfano wa paneli | TM070DVHG01-41 |
| aina ya paneli | a-Si TFT-LCD , LCM |
| muundo wa pixel | RGB Vertical Stripe |
| ufunguzi wa bezel | - |
| uso | - |
| uwiano wa utofautishaji | 500:1 (Typ.) (TM) |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| wakati wa majibu | 20 (Typ.)(Tr+Td) |
| aina ya taa | 3S6P WLED , 20K hours , Without Driver |
| skrini ya kugusa | PCAP |
| maombi | Industrial |
