| Nambari ya Sehemu | HJ070NA-13A |
| Chapa | Innolux |
| Ukubwa | 7.0 |
| Maombi | MP4 |
| Azimio | 1024×600 |
| Muundo | LCM |
| Mwangaza | 250 |
| CR | 700:1 |
| Rangi | 262K/16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | LVDS |
| chapa ya paneli | CHIMEI INNOLUX |

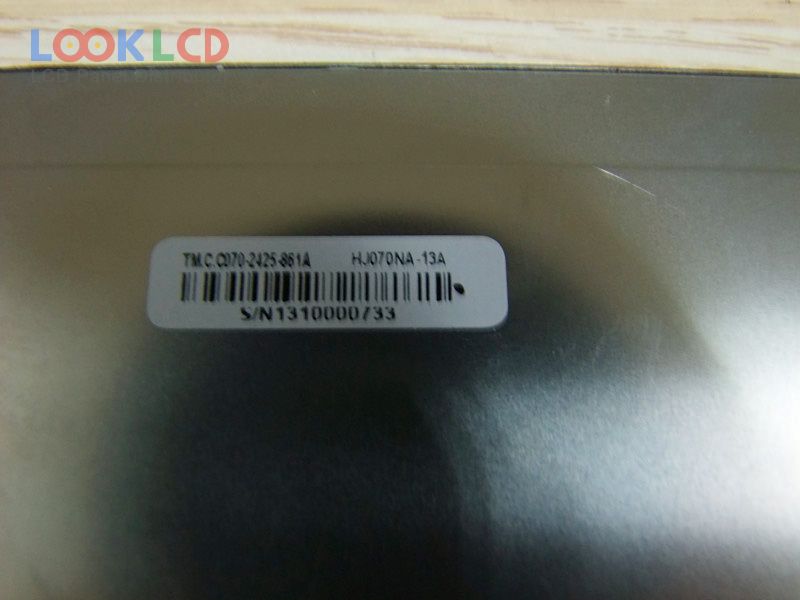

| mfano wa paneli | HJ070NA-13A |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 1024(RGB)×600 , WSVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 153.6×90 mm |
| muhtasari | 165.75×105.39×2.65 mm |
| uso | Clear |
| mwangaza | 250 cd/m² (Typ.) |
| uwiano wa utofautishaji | 700:1 (Typ.) |
| kuonyesha rangi | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| wakati wa majibu | 10/15 (Typ.)(Tr/Td) |
| angle ya kutazama | 70/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | WLEDWithout Driver |

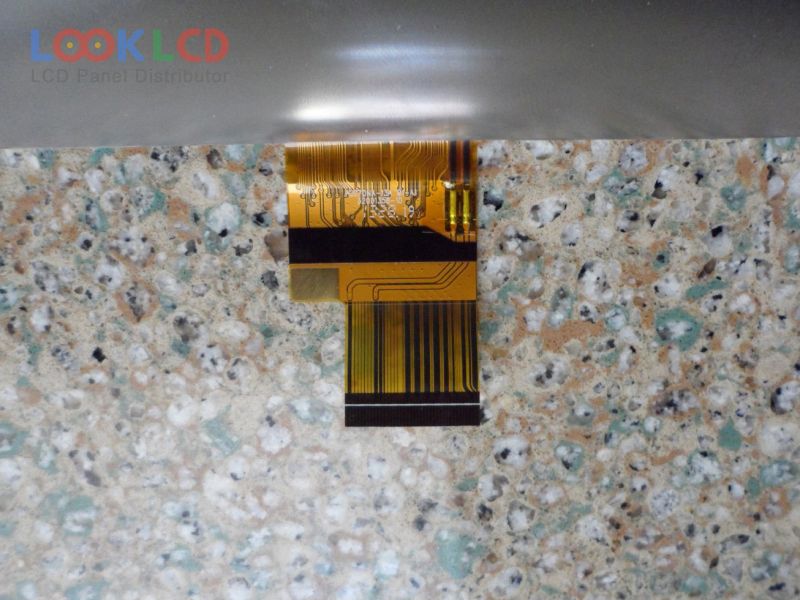

| kiolesura cha ishara | LVDS (1 ch, 6/8-bit), 40 pins |
| voltage ya pembejeo | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maombi | MP4 |
