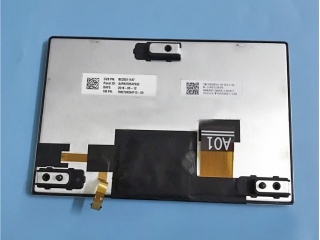

| Nambari ya Sehemu | TM070RDHP10-00 |
| Chapa | TIANMA |
| Ukubwa | 7.0 |
| Maombi | Automotive Display |
| Azimio | 800×480 |
| Muundo | a-Si TFT-LCD, LCM |
| Mwangaza | |
| CR | 1000:1 |
| Rangi | 16.7M |
| Mwangaza nyuma | WLED |
| Kiolesura | Parallel |
| chapa | TIANMA |
| mfano | TM070RDHP10-00 |
| ukubwa wa diagonal | 7.0 inch |
| aina | a-Si TFT-LCD, LCM |
| muundo wa pixel | 800(RGB)×480 [WVGA] 133PPI |
| usanidi | RGB Vertical Stripe |
| eneo la kazi | 152.4(H)×91.44(V) mm |
| muhtasari dim. | 165.1(H)×108.44(V) ×13(D) mm |
| eneo la bezel | 155.4(H)×94.44(V) mm |
| matibabu | Antiglare, Hard coating (3H) |
| mwangaza | 1000 cd/m² (Typ.) |
| uwiano wa utofautishaji | 1000:1 (Typ.) (TM) |
| tazama mwelekeo | Symmetry |
| wakati wa majibu | 35 (Max.)(Tr+Td) |
| angle ya kutazama | 88/88/88/88 (Typ.)(CR≥10) |
| hali ya uendeshaji | SFT, Normally Black, Transmissive |
| rangi ya msaada | 16.7M 71% NTSC |
| chanzo cha mwanga | WLED [8S2P] , 10K hours , W/O Driver |
| uzito | 180g (Max.) |
| iliyoundwa kwa ajili ya | Automotive Display |
| kiwango cha fremu | 60Hz |
| jopo la kugusa | Without |
| aina ya kiolesura | Parallel RGB (1 ch, 6/8-bit) , 40 pins FPC |
| usambazaji wa nguvu | 3.3V (Typ.) |
| mazingira | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -45 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
