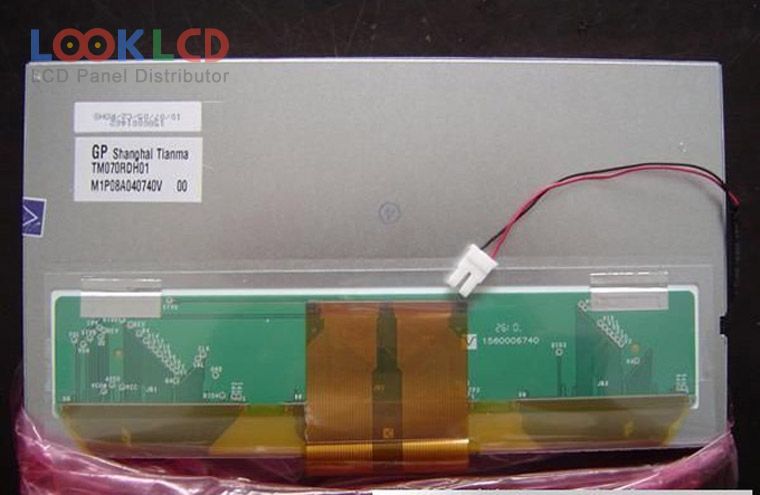

| Nambari ya Sehemu | TM070RDH01 |
| Chapa | Tianma |
| Ukubwa | 7.0 |
| Maombi | CNS |
| Azimio | 800×480 |
| Muundo | LCM |
| Mwangaza | 400 |
| CR | 400:1 |
| Rangi | 262K |
| Mwangaza nyuma | WLED |
| Kiolesura | TTL |
| chapa ya paneli | TIANMA |
| mfano wa paneli | TM070RDH01 1 Compatible model |
| aina ya paneli | a-Si TFT-LCD , LCM |
| saizi ya paneli | 7.0 inch |
| azimio | 800(RGB)×480 , WVGA |
| hali ya kuonyesha | TN, Normally White, Transmissive |
| eneo la kazi | 157.2×82.32 mm |
| muhtasari | 167×93×6.1 mm |
| uso | Antiglare |
| mwangaza | 400 cd/m² (Typ.) |
| uwiano wa utofautishaji | 400:1 (Typ.) |
| kuonyesha rangi | 262K (6-bit), CIE193150% |
| wakati wa majibu | 25 (Typ.)(Tr+Td) |
| angle ya kutazama | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| masafa | 60Hz |
| aina ya taa | 3S10PWLEDWithout Driver |
| kiolesura cha ishara | TTL (1 ch, 6-bit), 60 pins |
| voltage ya pembejeo | 3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
| maombi | CNS |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
| TM070DDH03 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| TM070JDHP01-00 | Tianma | 7.0 | 1280×800 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
| TM070SDH03 | Tianma | 7.0 | 800×600 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| DLC0700CZG-6 | Other | 7.0 | 800×480 |
| L5F30818P01 | Epson | 6.5 | 800×480 |
| LA070WV4-SD03 | LG Display | 7.0 | 800×480 |
| LB070WQ4-TM06 | LG Display | 7.0 | 480×234 |
| LB070WV3-SD01 | LG Display | 7.0 | 800×480 |
| LQ058T5DG31 | SHARP | 5.8 | 480×240 |
| LQ064A5CG01 | SHARP | 6.4 | 480×234 |
| LQ6BW506 | SHARP | 5.8 | 400×234 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
